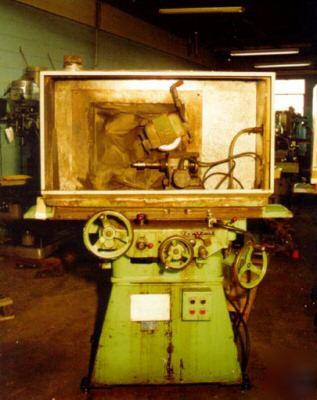

6" x 18" covel hydraulic surface grinder 1962 #22660
New 1962, Serial No 10H5848, Model 10H,
Hydraulic Longitudinal & Cross Feeds
Table Dimensions, Overall.............. 9.875" x 44.25"
Table Working Surface, W x L........... 6" x 18"
Grinding Width Capacity, Maximum....... 6"
Grinding Length Capacity, Maximum...... 18"
Grinding Wheel Diameter................ 7"
Grinding Wheel Width................... .5"
Grinding Wheel Hole.................... 1.25"
Height Under 7" Grinding Wheel......... 16.5"
Table Longitudinal Travel.............. 20"
Table Cross Travel..................... 7"
Table Longitudinal Feeds, Range........ 5 to 70 FPM
Table Cross In-Feeds, Range............ .005 to .250 IPR
Floor Space Required, L x D............ 6'7" x 4'2"
Overall Height......................... 5'8"
Weight, Approximately.................. 2350 LBS
PRICE: F.O.B. OUR WAREHOUSE........... $850.00
