Bourg bdf / bdf-x automated bookletmaker - great shape

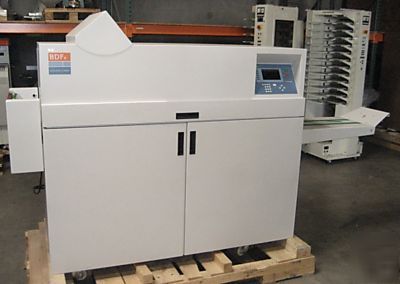

Bourg BDF / BDF-X Automated Bookletmaker Great Shape

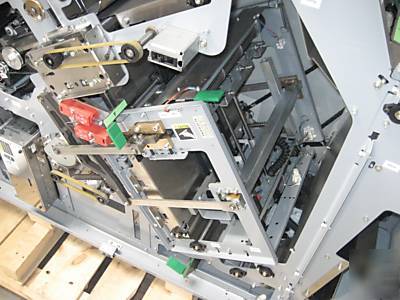

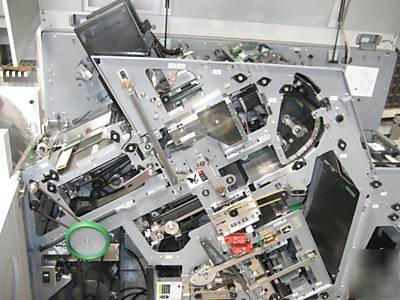

This C.P. Bourg BDF Fully Automated bookletmaking machinery is in excellent condition and has been completely serviced by the PFS technical team with years of experience and factory OEM parts.

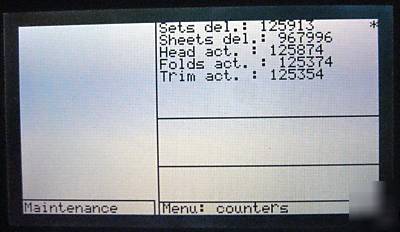

This BDF is an X BDF-X model, but can be modified for use with traditional bookletmakers by replacing the input module and base. Please call for details if required. Or, use in-line with your digital printer with only 125,000 booklets on the counter (see picture), this would be an excellent option for replacing that old, worn BDF that you have been using for years.
When comparing this machine to lesser priced units on the web, please consider that PFS was a Bourg dealer and our trained and certified technicians have gone completely through this machinery to guarantee trouble-free performance for many years to come. If you require crating, transportation, installation, training, etc. please contact us for a quote. This is our business and we know how to do it right the first time. Thank you!!!
Fast and flexible, the "State of the Art" in Finishing Equipment.
This compact booklet maker combines 3 functions in one self-contained module:
* trim (optimized footprint).
The BDF is provided with a selection of booklet modes: top/edge/corner and saddle-stitched sets.
The Bourg Document Finisher BDF is the ideal companion for all BST collators.
* Up to 5000 books per hour.
* Fully automated set-up in less than one minute.
* Stitching heads equipped with unique self threading stitching wire cassette (toolless cassette change).
* Can handle a mix of stocks to create booklets with prestige covers.
* Non Stop Operation with separation of faulty sets as unprocessed output.
Coated/uncoated: 60 gsm to 200 gsm - 16 lb. to 90 lb.
Cover: 80 gsm to 300 gsm - 202 lb. to 110 lb.
(In process x cross process dimensions)
Saddle stitch: 203 x 120 mm to 520 x 356 mm - 8 x 4 7 to 20 3/8 x 14
Top/side/corner stitch: 160 x 127 mm to 297 x 356 mm - 6 1/8 x 5 to 11 5/8 x 14
Finished booklet in folder or trimmer: 92 x 120 mm to 260 x 356 mm
MAXIMUM SET THICKNESS SADDLE STITCH:
22 sheets, 80 gsm or 20 lb. or equivalent thickness, including cover.
MAXIMUM SET THICKNESS SIDE/TOP STITCH/CORNER STITCH:
55 sheets, 80 gsm or 20 lb. or equivalent thickness, including cover.
For additional company information please call
