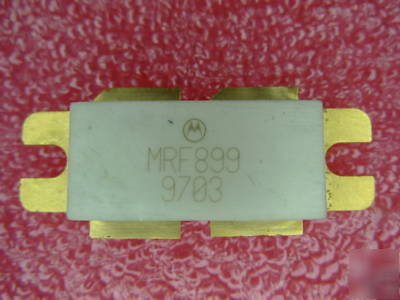

1X motorola MRF899 150W 800–960 mhz rf power transistor
Designed for 26 Volt UHF large signal, common emitter, Class AB linear
amplifier applications in industrial and commercial FM/AM equipment operating
Specified 26 Volt, 900 MHz Characteristics
Output Power = 150 Watts (PEP)
Minimum Gain = 8.0 dB @ 900 MHz, Class AB
Minimum Efficiency = 35% @ 900 MHz, 150 Watts (PEP)
Maximum Intermodulation Distortion 28 dBc @ 150 Watts (PEP)
Characterized with Series Equivalent Large Signal Parameters from 800
100% Tested for Load Mismatch Stress at all Phase Angles with 5:1 VSWR
@ 26 Vdc, and Rated Output Power
Gold Metallized, Emitter Ballasted for Long Life and Resistance to Metal
Circuit board photomaster available upon request by contacting
RF Tactical Marketing in Phoenix, AZ
