Vb 6.0 hmi for allen bradley controllogix ethernet plcs
Allen Bradley ControlLogix Visual Basic HMI Program

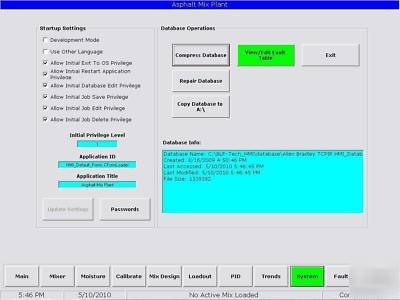

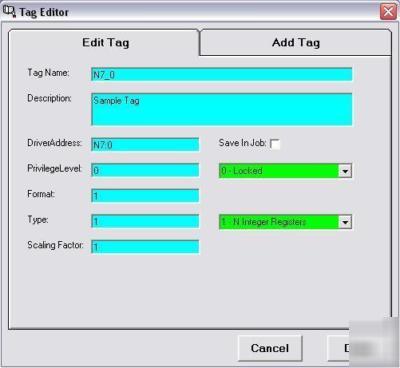

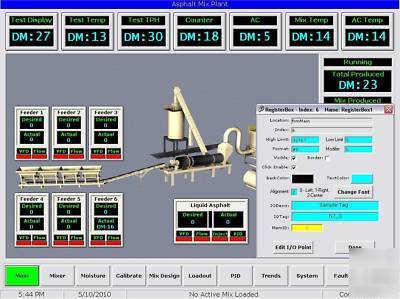

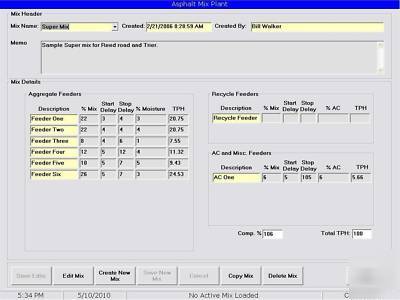

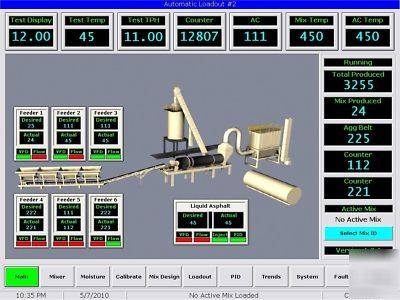

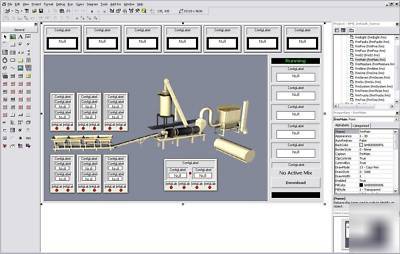

This Visual Basic HMI program was written using Visual Basic 6.0 and provides you the capabiltiy to create your own HMI application with custom screens using the provided source code. This HMI communicates with the Allen-Bradley ControlLogix and CompactLogix PLC's via the included Ethernet driver. We have designed the back end of the software that communicates to the PLC and created the database to store all the setup information. The sample screens below show an application created with this HMI software that controls the production of an asphalt plant. Other screens show the pre-built screens for setup of the fault database and assigning a PLC address to a button on the screen. We also provide the source code for the screen design module so you can design your own screens or modify the sample we include on the CD. All of the program setup information is stored in an access database. This application gives you the capability to create your own HMI using Visual Basic 6.0 and save a tremedous amount of money. We also provide Visual Basic application design services if needed at $65.00 per hour. Some of the advantages of our software are listed below.
* You own it - You own the form design source code and can modify and use it as often as you want.
* Custom Controls Included - Several controls are included that you may drag and drop onto the form design screen of your Visual Basic project.
* Uses Visual Basic 6.0 - You will need to own a copy of Visual Basic version 6.0 and understand Visual Basic programming to use this software.
* Driver Included - Does not require RSLinx or 3rd party drivers.
* Drag and Drop - All PLC communications is already developed with the ActiveX driver DLL and requires no form control.
* Source Code - Sample application and form design source code included.
* PLC Code Included - We will also provide a sample RSLogix 5000 project for the sample project for learning and testing.
* Email Support - We provide email support for as long as you need it.
* All ControlLogix processors are supported via an Allen Bradley Ethernet card.
* All CompactLogix Processors are supported that have a built in ethernet port.
You will receive the sample code that was written using Visual Basic 6.0 and the Allen Bradley PLC Ethernet driver. Remember, we also provide Visual Basic application design and PLC software design services for other custom projects if required at $65.00 per hour. So if you need us to design the HMI for you, we have several years experience in the automotive, chemical, fertilizer, and asphalt industries. We would be happy to quote any project requirements you may have.
