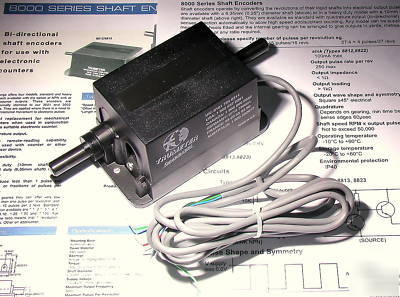

Rotary shaft encoder [rotation counter/incremental cnc?
This version: NPN sink output. 50 pulses per revolution. Heavy duty 10mm shaft [both ends]
Item description: Heavy duty, bi-directional, NPN (sink) shaft encoder for use with electronic counters.
Typical Applications: Speed monitoring, offset measurement, length or position measurement, motion tracking, coil winding etc...
Mounting Base: Aluminium alloy.
Bearings: Bronze, oil impregnated for life.
Shaft Diameter: 10.0mm (0.394in).
Supply Voltage: 7.5-24VDC 15mA.
Maximum Output Frequency: 5kHz.
Maximum Shaft Speed: 1000 RPM.
Connections: 2m long (other cable lengths to order).
Environmental Protection: IP40.
Operating Temperature: 0 C to +50 C.
Storage Temperature: -20 C to +70 C.
Approximate dimensions: Base 111mm x 65mm Height: 63mm Length of plain section of shaft 24mm [each shaft, there are two]. Shaft Diameter: 10.0mm (0.394in).
Trumeter product page with link to datasheet showing unit dimensions etc.:
http:// /Home.php?item=8822&lang=english
http://docs-europe.origin.electrocomponents.com/webdocs/038a/0900766b8038a574.pdf
Condition:BRAND NEW/UNUSED in original polystyrene carton.
