Fellows 10-2 high production gear shaper

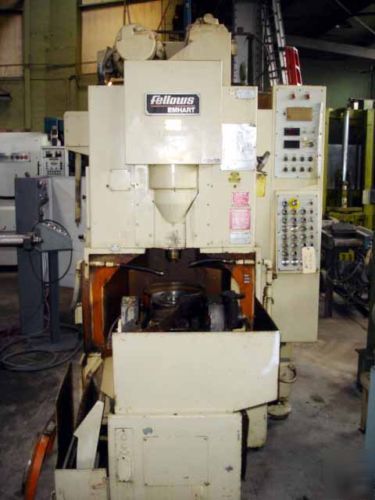

FELLOWS 10-2 HIGH PRODUCTION GEAR SHAPER WITH TILTING WORK SPINDLE

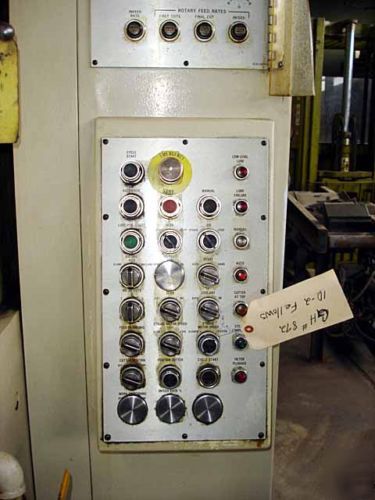

Motor Driven With 7.5/3.75 HP, 2-Speed, 3 Phase, 60 Cycle, AC Volt Spindle Drive. Independent DC Rotary Drive For Feeds. 5 HP Hydraulics. MD Coolant. MD Lubrication. Complete Electrical Controls.

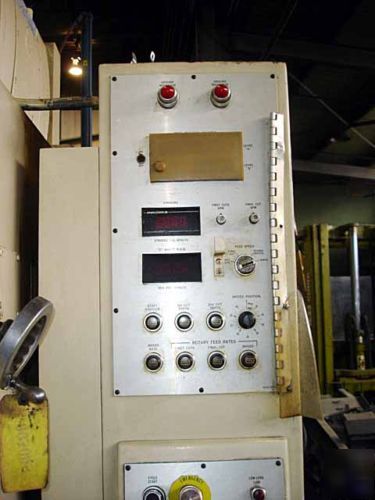

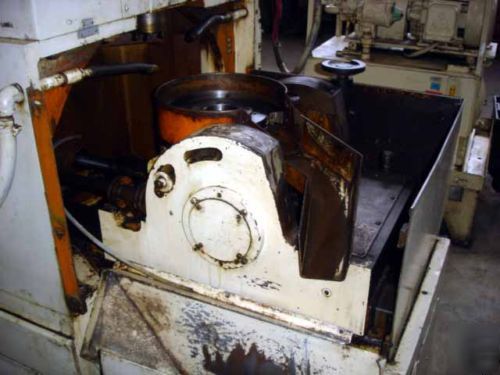

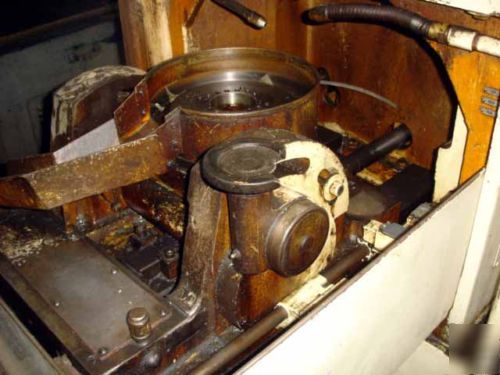

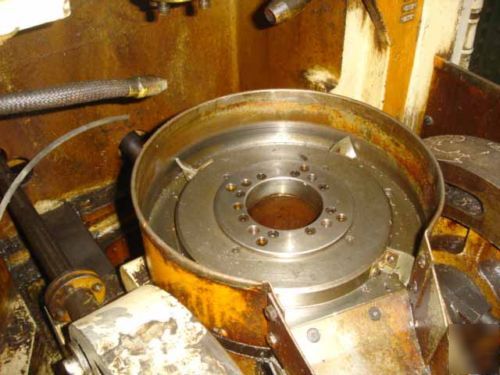

Tilting Work Spindle Which Can Tilt 10 Degrees From Vertical In Either Direction To Provide Additional Crowing Or Tapering Capability. Spindle Can Also Be Tilted 90 Degrees To Horizontal For Producing Face Gears. 3" Raise. Capacity For Cutting Internal Or External Spur Or Helical Gears And Many Non-Involute Shapes. Built-In Crowning Ability. Variable Speed Infeed For Better Finish And Extended Cutter Tool Life. Cuts And Infeed Rates Are Set By Potentiometers. Infinitely Variable Depth Control. Digital Display For Setting Stroking Speeds For Rough And Finish Cuts. Automatic Braking. 1, 2, 3 Cut Cycles. Automatic Fixture Clamping. Analog LED Table RPM. Coolant. Magnetic Chip Conveyor.
Maximum Diametrical Pitch: Spur 4
Maximum Diametrical Pitch: Helical 5
Spindle Stroking Speeds (Variable) 33-1300 RPM
Face Plate to Spindle Housing 10
