Asahi-keiki ap-101-12-1 digital dc voltmeter& ammeter

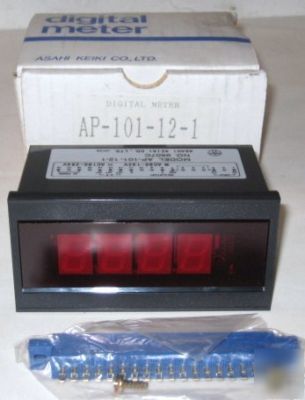

This listing is for a digital meter.
* Make: Asahi-Keiki Co. Ltd (Company Limited)
* Cat / Model / Part # 1: AP-101-12-1
* Cat / Model / Part # 2: 9607C
* Description: Digital Meter
AP-101-13 DC Voltage Measurement
* Input Configuration: Single Ended
* Input Bias Current: 50PA (Typ.)
* Conversion Rate: 2.5/sec
* Normal Mode Rejection: TYP.40dB (50/60Hz)
* Zero Stability: Automatic Zero Adjustment
* Display: LED. 14.2mm 3 1/2-digit
* Polarity: A - is displayed automatically
* Decimal Point: Settable to any digit position
* Overrange Indication: When input exceeds the maximum display, 1999 flashes.
* DC5V 5%, 100mA (Max.)
* DC24V 20%, 30mA (Max.)
* Operating Temperature: 0~50 C, 35 to 85% RH
* Power Consumption: 1.5VA
* Dimensions: 48(H) 96(W) 73(D)mm DIN Size
* Weight: Approx. 150g (For AC), 85g (For DC)
* AC type; Between input (Lo) terminal and earth, DC500V Between power supply terminal and input terminal, earth, common, case, AC1500V/1 min.
* DC type; Between input (Lo) and power supply (0V), DC 500V
* Insulation Resistance: DC500V 100M at above terminals
For full specifications, schematics, etc., please visit Asahi's product brochure at http://www.asahikeiki.co.jp/busine_e/e_catalog_menu/pdf/digital_panel_meter/AP-101.pdf
