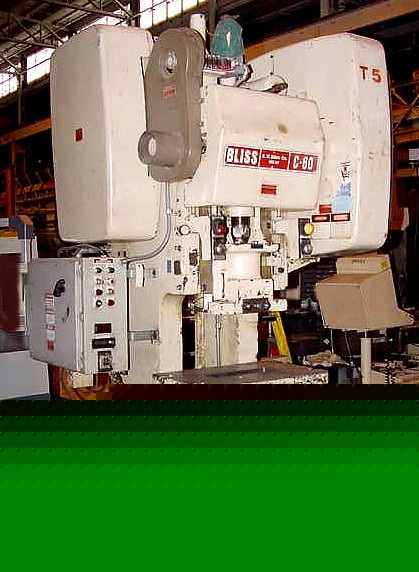

60 ton 4" strk bliss c-60 obi press, air clutch
60 TON BLISS BACK GEARED O.B.I. PRESS
MODEL #C-60 NEW 1991 S/N M71060/HP54416
RATED CAPACITY ........................... 60 TONS
DIAMETER OF CRANKSHAFT A MAIN BEARINGS ... 4"
STROKE ................................... 4"
BED AREA ................................. 21" X 32"
SHUT HEIGHT .............................. 14-1/4"
ADJUSTMENT OF SLIDE ...................... 3"
SLIDE AREA ............................... 17" X 12"
STROKES PER MINUTE, INFINITELY VARIABLE .. 40 TO 80
DEPTH OF THROAT, CENTER OF RAM TO FACE OF COLUMN 11"
WIDTH OF OPENING THROUGH BACK ............ 15"
STEM HOLE IN SLIDE (DIAMETER X DEPTH)..... 2" X 3"
- AIR FRICTION CLUTCH AND BRAKE WITH RAM MOUNTED DUAL
- EDDY DYNAMATIC ELECTRICALLY ACTUATED VARIABLE SPEED DRIVE
- KEY LOCK SELECTOR SWITCHES FOR TEST/NORM/RESET,
BUMPER/OFF/BAR, PRODUCTION COUNTER WITH LED DISPLAY, AND
OFF/INCH/SINGLE OR CONTINOUS MODES OF OPERATION
- TRABON AUTOMATIC LUBRICATION SYSTEM
- BOLSTER PLATE - 21"LR X 32"FB X 3"H
10 HP, 3/60/230-460 VOLT DRIVE AND ELECTRICAL CONTROLS
