Hp agilent 4270A automatic capacitance bridge nixie
HP Agilent 4270A Automatic Capacitance Bridge Works!
This Automatic Capacitance Bridge automatically measures capacitance, equivalent parallel conductance, and dissipation factor.
It offers 5 digit NIXIE readout of capacitance from full scale ranges of 18.000pF to 1.2000 F with 0.001pF resolution and measurement speed of 0.5seconds.
* Conductance ranges from 899.9 nmhos to 8.999 mmhos
* Four measurement frequencies from 1KHz to 1MHz
* Basic accuracies of ( n% of reading + number of digits): capacitance (0.2-0.5 + 1), conductance (1-3 + 10), dissipation [1-3 + (10 + internal capacitor/capacitance measured)]

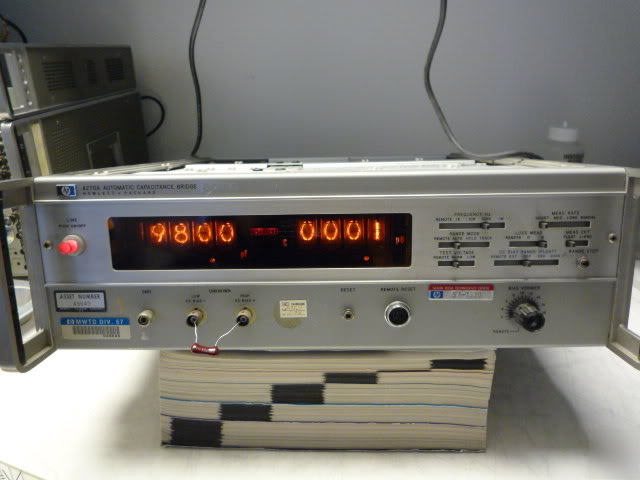

Showing a cap marked 1000PF +/- 5% measuring 980.0PF and .1uMho:
Showing a cap marked 15PF +/- .5PF measuring 14.466PF and .007uMho:
