Hp 16500L logic analyzer interface for hp 16500B
A system of measurement modules
The HP 16500L is the mainframe of the Hewlett-Packard Logic Analysis System. It offers a modular structure for plug-in cards with a wide range of state, timing, oscilloscope, and pattern generator capabilities.
A powerful, easy-to-use interface
The touchscreen interface offers popup menus and color graphics to lead you through measurement configurations without having to remember lots of steps. You can add a keyboard or mouse to speed data input and measurement configuration.
The Agilent HP 16500L, Logic Analyzer, connects the HP 16500B Logic Analysis System to Ethernet local area networks (LANs) to support both hardware and software development.
This module also interfaces the Agilent HP 16500B mainframe to the Agilent HP 16501A expansion frame and the Agilent HP 16505A prototype analyzer.
(2)HP 16550A 100MHz State / 500 MHz Timing module
(4) HP 16500-40502 Filler Panels

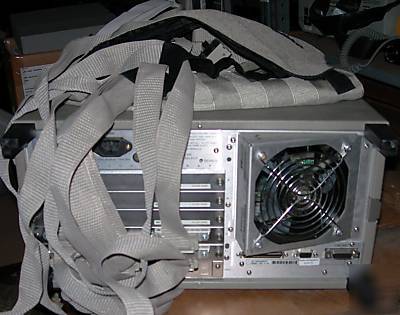

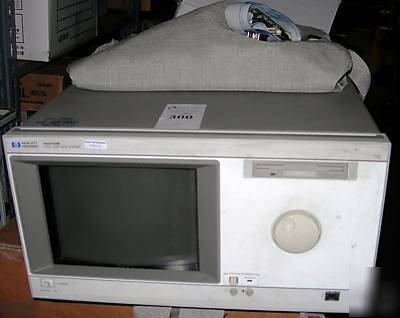

Picture represents the actual item.
