Raimondi pikus 105 wet saw ceramic cutting tool
All items sold are part of, or come from, a third party and may include items listed for individuals or may be from estate sales, government sales which include local law enforcement, city works departments, fire department or acquired it from some other source.
Any description and or compatibility information provided is obtained mostly by researching the internet.
All information is posted as reference only and we DO NOT stand behind it or confirm that it is actual or true.
Pictures may be used to represent the item listed and may not be of the actual item itself.
a processing charge or fee, packing materials, facility fees and additional labor fees just to mention a few.
A 1/2 hour leeway is given to pick up an item before and after a scheduled time.
If so, we only use the United States Postal service and their Express Mail International service.
This service is expensive but it is the only service that provides:
tracking information (protection for us as a seller)
All questions will be answered to the best of our ability.
If you do not receive an answer to your question then it is because:
2) The question does not pertain to the item listed
3) The information can be easily obtained by searching the web.
Priority / Rush deliveries are submitted at an additional cost.
Raimondi Pikus 105 Wet Saw Ceramic Cutting Tool
The following information and pictures are a description and pictures found on the internet.

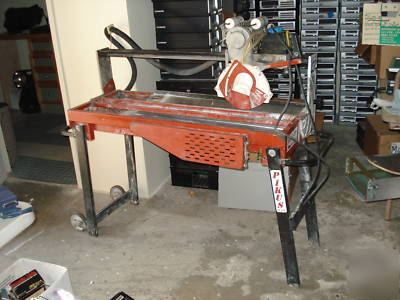

I have added pictures of the tool as it is for sale.
It is in working condition and there are no blades and the nuts and bolts for the blade cover are missing.
* For cutting porcelain, single and double fired, marble, granite and bricks straight 45 bevel (jolly) & plunge cuts
* Maximum length of cut 105cm (41 )
* Maximum thickness of cut: 80mm (3 ) in single pass; 150mm (6 ) in double pass
* Pivoting blade guard remains parallel with tile to ensure maximum cutting depth
* Maximum blade diameter 250mm (10 )
* Gear to ratio of motor to blade = 1.4 1
* drive belt type poly V Floating blade guard remains in contact with tile to provide extra safety during operation.
* Heavy duty water pump and (4) jet nozzles provide superior blade cooling
* Sliding motor assembly with cast aluminium housing and rail supports, extruded aluminium rail
* Tilting motor assembly for performing miter cuts (jolly) from 0 to 47
* Folding legs / stand with wheels kit for easy transport
* Disc flanges sizes are 25,4 (1 ) and (for Us version only ) 15,8 mm
* Supplied with: continuous rim 10 diamond blade (for ceramic tiles), key kit , dressing stone , user and maintenance manual.
