Conquest 23 vert & horiz dowel construction drill

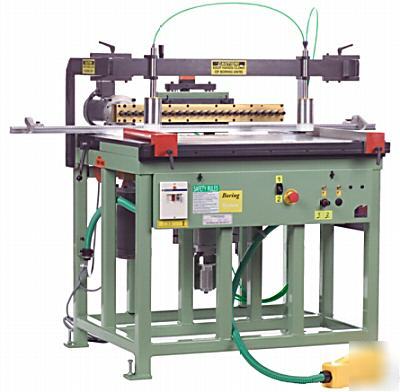

Conquest BO173 23 Spindle Vertical & Horizontal Dowel Construction Drill
Construction Drill Line Boring Machine
Why a Conquest Construction Drill?
* Telemechanique Control System.
* Dedicated Horizontal Configuration.
* Quick Adjust Horizontal Fences For "Out Of Square Panels".
* Individual Vertical Head Available (Eliminates Loss Of Accuracy Over Time Sometimes Experienced With Flip UP/Flip Down Machines.)
* TEFC Baldor motor(s), 3,450 rpm, 2 hp - 230 volt (5.9 amps) 60 Hz Single Phase, turns off when pedal released.
* Accepts bits with 10mm shank, one flat side, 12 lefts & 11.
* Machine weight = 1110 lbs & 1175 lbs crated.
* Quick Release Chucks. ($24.00 per spindle)
* 440 Volt (2.9 amps) 60 Hz Three Phase
