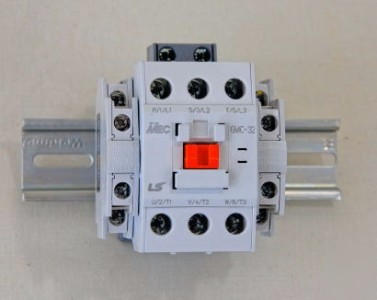

Altech GMC-32-120 NEMA 1 Contactor with 120 VAC Coil
IEC60947-4 / UL508A 3 Phase Contactor
The Altech Contactors are made to exacting specifications. They have been rated CE, and they are UL listed in both the United States and Canada. They are rated at up to 2 million electrical operations. They come with 2 auxiliary contacts that each have both a form A (NO) and a fully independent form B (NC) contact. They can be either DIN Rail mounted or panel mounted. This model has a 120 VAC coil.
* Included 2 each N.O./N.C. Aux Contacts
* Motor Overloads Available
* Equivalent to NEMA Size 1
* Size = 68 (W) x 82 (H) x 94.6 (D) mm
* UL Listed, CE Certified and Marked
* Mechanical Lifetime: 15 million operations
* Electrical Lifetime (AC3): 2 million operations
* Electrical Usage (AC3): 1800 operations/hour
* Finger Safe Installation
* AC1: 50 Amps (Resistive Load)
* AC3 200/240: 7.5 kW, 32 A
* AC3 380/440: 15 kW, 32 A
* AC3 500/550: 18.5 kW, 28 A
* Continuous Current: 50 Amps
These come with a 1 year factory warranty. We are an Authorized US Reseller!
