6" w 18" l sharp sg-618 surface grinder, hand feed prec
6" W 18" L Sharp SG-618 SURFACE GRINDER, HAND FEED PREC

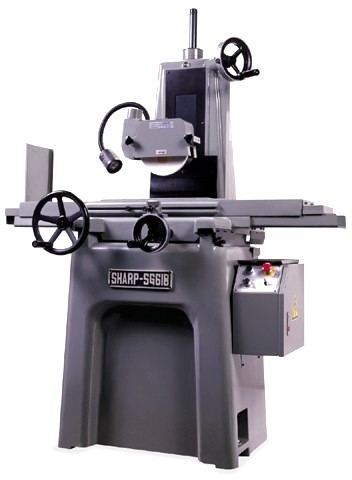

6" Width 18" Length Sharp SG-618 SURFACE GRINDER, HAND FEED PRECISION
NEW SHARP HAND FEED PRECISION SURFACE GRINDER
Maximum grinding length: 18.5"
Maximum distance: table to spindle center: 16"
Working Surface (W x L): 6 x 18.3"
Maximum longitudinal travel: 18.9"
Hand feed per revolution: 4.2"
Graduation of hand wheel: 0.001"
VERTICAL MOVEMENT OF WHEEL HAND
Graduatin of hand wheel: 0.0001"
Spindle motor: 1-1/2 hp (wired either 220v or 440v, please specify)
Floor space (W x H x L): 83 x 40 x 48"
Net weight (approximately): 1,600 lbs.
One "V" and one flat way for longitudinal travel; both ways are
hand-scraped and covered with Turcite B coating
Accurate slot grinding achieved using saddle locking system
Double-nut backlash eliminator
Cross slide and column screws are hardened and ground to a 70
main spindle runout within 0. 0001"
Grinding Wheel (8" x 1.25" x 0.63")
