Rohde & schwarz FSIQ26 signal analyzer, with opt. B22

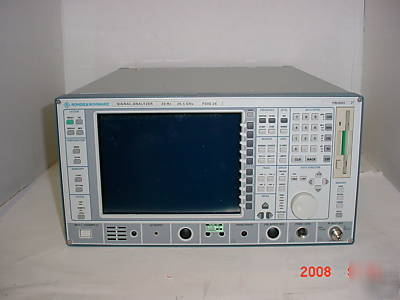

Rohde & Schwarz FSIQ 26 Signal Analyzer, with Option B22 (Increased Level Accuracy up to 2 GHz)
The Rohde FSIQ is the one box solution in signal analysis with ultrawide dynamic range for sophisticated ACPR measurements: NF = 15 dB/ TOI = +20 dBm (FSIQ7), integrated vector signal analyzer for universal analysis of digital and analog modulated signals BPSK to 16QAM, (G)MSK, AM, FM, PM, vector signal analyzer for W-CDMA/3GPP.
The Symbol rate up to 6.4 Msymbol/s. high-speed synthesizer with 5 ms sweep time for FULL SPAN (FSIQ 3/7) and high display update rate up to 25 sweeps/s, it large colour display with high resolution (24 cm/9.5" TFT) 75 dB ACPR for Wideband-CDMA 82 dB ACPR in alternate channel for Wideband-CDMA True RMS detector for precise and repeatable measurements of any signal type.
* 3 models and frequency ranges
* FSIQ 3: 20 Hz to 3.5 GHz
* FSIQ 7: 20 Hz to 7 GHz
* FSIQ 26: 20 Hz to 27 GHz
* Resolution bandwidth 1 Hz to 10 MHz in 1/2/3/5 steps
* 5-pole resolution filters with high selectivity
* FFT filter with 1 Hz to 1 kHz RBW for fast measurements
* Displayed average noise floor typ. -150 dBm in 10 Hz bandwidth
* Third-order intercept +20 dBm with FSIQ 7, +22dBm with FSIQ26
* Phase noise -150 dBc/Hz at 5 MHz offset
* 75 dB ACPR dynamic range for W-CDMA (4.096 MHz integration BW)
* Total measurement uncertainty <1 dB up to 2.2 GHz, <1.5 dB up to 7 GHz
* RMS detector for high-precision power measurements irrespective of waveform
* Fast spectrum analysis with 5 ms sweep time for full span (FSIQ3/7)
* Fast time domain analysis with 1 s zero span sweep time
* Integrated broadband vector signal analyzer for all main mobile radio standards and modulation modes with versatile result display: I and Q signal, magnitude and phase, vector and constellation diagrams, spreadsheets with numeric evaluation of modulation errors and demodulated bit sequence
* B22: Increased Level Accuracy up to 2 GHz
This item also includes a CD-ROM Manuals, Front Cover and Power Cord
