New wilton A2608-2 20" gear head drill press

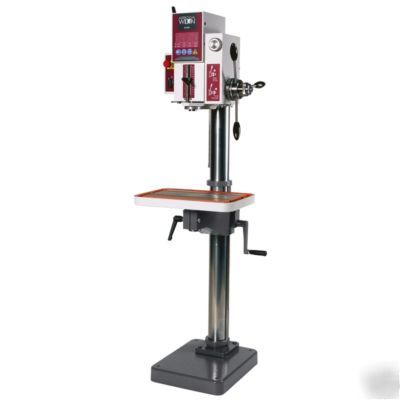

New Wilton A2608-2 20" Gear Head Drill Press
Manual Feed, 2-Speed Motor, 1.5HP, 220V, 3PH
Swiss Made! 3/4" Capacity In Mild Steel
Please note: limited quantities are available of this bandsaw. Pricing is good while supplies last.
Helical gears for smooth, quiet operation
Quick release drill ejector
Safety latch to prevent head dropping when unclamped
T-Slotted table with coolant trough
Head and table rotate 360 degrees around column
Two position, High/Low switch
3-15/16" Column diameter
English/Metric depth gauge
Motor: 1 to 1-1/2HP, 220V, 3Ph
Range of Spindle Speeds (RPM): 8 (130, 260, 420, 840, 535, 1070, 1745, 3480)
Quill Diameter (in.): 2-3/8
Max Distance Spindle to Table ( in.): 35-5/8
T-Slots Number and Size (in.): 2 & 9/16
Work Table Weight Capacity (lbs.): 350
Drilling Capacity (in.): 3/4
Column Diameter (in.): 3-15/16
Drilling Capacity Mild Steel (in.): 1-1/4
Tapping Capacity Mild Steel (in.) :1/2
Table Size (in.): 15-3/4 x 19-3/4
Drills to Center of Circle (in): 20
Vertical Movement of Drill Head: 8-5/8
Vertical Movement of Table (in.): 24-1/2
