Dynarad hf 110 portable x-ray machine fixer upper
Price Reduced by $500.00!. Was $1,995.00, now $1,495.00. Click the "make offer" button, enter $1,495.00, and its yours.

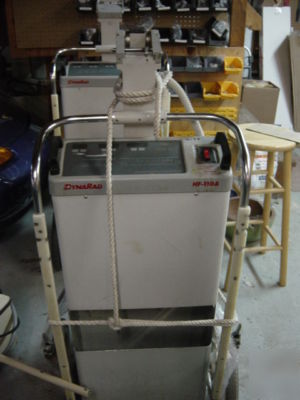

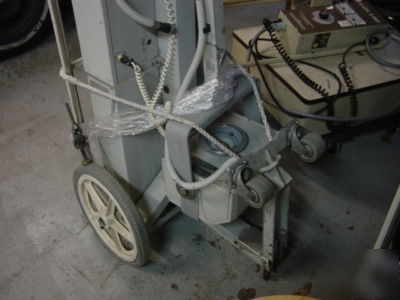

Dynarad HF 110 Portable X-Ray machine. Date of manufacture March 1995.
This Dynarad is in good working order, but is missing several parts; including collimator assembly, the arm-lock handle, and the power cord.
While the unit is in good working order, we cannot offer any warranty. Will be more than happy to demonstrate it.
This unit cannot be used on human patients as it now sits. You will need to replace the missing collimator. The other parts are trivial. This unit is an excellent deal for use as spare parts.
: High frequency inverter, 2.5 kilowatt output.
50-100 kVp continuously adjustable,
Fixed, 15 mA and 25 mA, constant
independent of kVp or time settings.
0.01 to 4.0 seconds in 96 increments.
Ready, x-ray on, mA selected, and digital
displays of kVp, mAs and time.
Detachable hand switch, two position, prep
2.7 mm of aluminum at 100 kVp (min.).
110-125 VAC, 50 Hz. or 60 Hz, or 220-250
Maximum Focal Spot to Floor: 78. (198 cm)
Minimum Focal Spot to Floor: 15. (38 cm)
Horizontal Extension of Focal Spot: 21. (53 cm)
Rotation About Horizontal Axis: 360
Rotation About Tube Axis: 270
27 W, 52 L, 28 H (66 x 135 x 71 cm).
52 H, 27 W, 28 L (135 x 66 x 71 cm).
Complies with all CDH performance standards in effect at date of manufacture.
UL recognized for U.S. and Canada.
As we strive for constant improvement, specifications subject to change without notice.
