3" Dia. Warner & Swasey 2AB M3380 AUTOMATIC SCREW MACHI

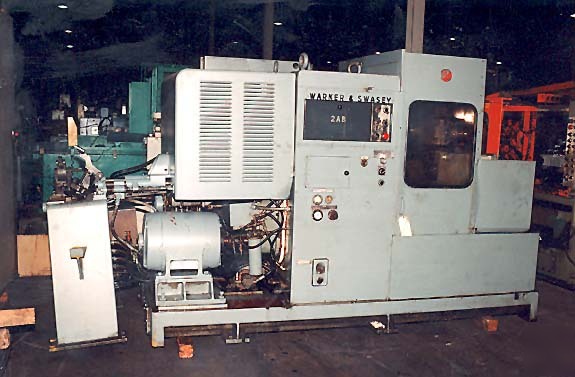

3" Dia. Warner & Swasey 2AB M3380 AUTOMATIC SCREW MACHINE, 3"
MODEL: 2AB S/N: 2041256 NEW: 1965
ROUND ............................................ 3"
SQUARE ....................................... 2-1/8"
HEXAGONAL ................................... 2-9/16"
MAXIMUM LENGTH TURNED .......................... 9-1/2"
BAR FEED STROKE ............................ 1/8" - 10"
MAXIMUM STROKE .................................. 11"
MAXIMUM WORKING STROKE ....................... 9-1/2"
LENGTH OF TOOL HOLDER ADJUSTMENT ON
TURRET FACE ............................... 13-1/4"
FEEDS (36) ............................. .001" - .062"
MAXIMUM TRAVEL .............................. 5-1/16"
FEED STROKE .................................. 2-3/4"
FEEDS ................................ .001" - .062"
CUT-OFF SLIDE .................................. 1-3/4"
CUT-OFF FEEDS (6) ..................... .0015" - .020"
THREADING .................................. 7 - 32 TPI
SPINDLE SPEEDS .......................... 56 - 1544 RPM
APPROXIMATE WEIGHT ........................ 17,500 LBS.
APPROXIMATE DIMENSIONS WITHOUT BARFEED .. 7'3" X 13'11"
*INSPECT UNDER POWER IN OUR WAREHOUSE*
