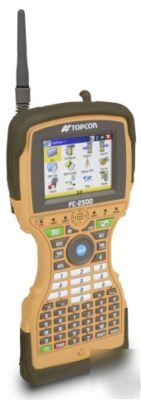

Topcon fc-2500 data collector with topsurv complete
TOPCON FC-2500 DATA COLLECTOR WITH TOPSURV COMPLETE (Robotics, GPS+ & Roading)
Retails for $5,490 OUR PRICE $4,550
* 5.17 mega pixel camera and bar code reader
* 256Mb RAM, 2Gb ROM (4X the competition)
* Built-in wireless Bluetooth and WiFi connectivity
* Windows CE.NET 5.0 operating system
* Add-on robotic radio design
* 55 key alphanumeric keyboard
* 8 way directional arrow and enter key
* Easy access USB flash drive
* Accessible, rechargeable and hot swappable batteries
You ll work faster, with more confidence and convenience, collecting a wealth of data not possible with any other controller.
FC-2500 Add-on robotic radio design
The FC-2500 has an add-on connection on the back of the unit to control a spread spectrum radio for robotics communication. Use this connector and an RS-1 to have a cable free radio connection to the Topcon robotic instruments. Additional packs may be possible in the future.
Finally a 55 key alphanumeric keyboard unit that can control the Robotic systems. We know that land surveyors in the US market prefer an alphanumeric keyboard data collector. This FC-2500 can handle the robotic radio as an expansion slot radio.
Use the USB mini port as both a Host and Client. This On-The-Go (OTG) functionality allows for expanded memory and easy file transfer through USB flash drives or ActiveSync connection. This design also provides rugged protection. The FC-2500 can not be compromised by opening a card door or flap. The entire unit is sealed and submersible.
Removable, hot swappable battery packs
With two NiMH batteries loaded standard with 2500mAh each, battery performance can be as high as 50 hours. But with all the functionality of this device turned on and on full power drain, you can still count on 12-14 hours. The typical power drain from a Bluetooth connection to a GPS receiver will run for 24 hours. Don t ever worry about overcharging, the FC-2500 has internal temperature monitors to prevent any unexpected high temperature issues.
The FC-2500 is rated at IP-67, which means it can be accidentally submersed in water. The unit also has a 3 foot drop proof rating.
Capture Reality in yet an additional device from Topcon. Topcon understands that a picture is worth more than a thousand words. This highly advanced camera can be used to associate photos with stored TopSurv points as Photo Notes. For every Topo shot, as photo note can be stored.
Mini USB 2.0 A/B (Type Mini-B)
Integrated Speaker and Microphone
-4 F to +122 F (-20 C to +50 C)
-4 F to +158 F (-20 C to +60 C)
10.85 in. x 5.34 in. x 2.19 in.
2.36 lbs. (with dual batteries)
RS-1 (2.4Ghz Futaba SpSp radio)
Camera Specifications: Rugged True-Camera-System
5.17 mega pixel color CMOS Sensor
QSXGA: 2048 x 1944, SXGA: 1280 x 960
