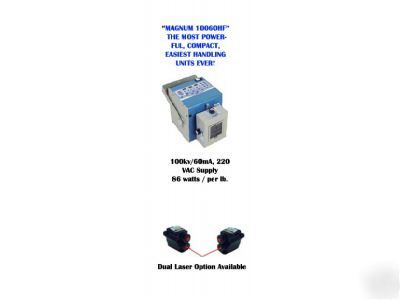

Portable x-ray machine versa-view ''magnum'' 10060HF
Introducing the NEWEST Advanced Feature, High Powered Unit
* Advanced high frequency (60hz) inverter type generator
* Full field light beam collimators with 30 second timer
* Overload protection for kV, mA, time, and temperature
Cabinet Size: 10''H x 10"W x 13 1/2"L
mAs minimum to maximum with 26 step selection: 50-60kVp@ 1.2 to 180mAs, 70kVp@ .1 to 150mAs, 80kVp@ .9 to 120mAs, 90kVp@ .6 to 90 mAs, 100kVp @ .4 to 60 mAs,
Time minimum to maximum:.02 to 3 seconds in 26 steps
mA Maximum: 20 to 6OmA based on kVp selected, 50-60kV/60mA, 62-70kV/50mA, 72-80kV/40mA, 82-90kV/35mA 91-100kV/30mA
Collimator: Cassette size indicators dials, 100 watt lamp automatic timer
Laser pointer: Optional , Single or Dual
Line Power Supply Requirement: 220 Volts
X-Ray Beam Aluminum Filtration in mm: 1mm A1equivalent @ 9OkV
Carry Case Size: 15 5/8" H x 15" W x 18 1/2" L
