> New UM216 usb lcd keypad temp fan monitoring module,
New UM216 usb lcd keypad temp fan monitoring module,

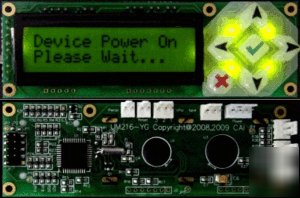

USB Connectivity, Keypad Input, 2x16 LCD Display RoHS
++Native USB Device UM216 is a keypad input device also a LCD display that based on Microchip controller. It is specially designed to work with USB 1.0 and 2.0 port on the motherboards. Its LCD has two lines and 16 characters in each line. To support our 14200 chassis LCD mounting smoothly, its plastic keypad designed slighly smaller than the chassis openning. Connecting from UM216 to the PC motherboard can use standard 10 pin ribbon cable and IDC connectors.
++Host State Indicator UM216 has special built-in functions to best support the host operations. When host power on without establishing the USB communication with UM216, there are two built-in screen will alternately display message as soon as power is on. When host take long time to boot up, this will reduce the possibility for user power off the host without proper shutdown. User can program each of the two alternative screens with his own messages. When host established communication with the UM216, the screen alternation will automatically stop.
++Longer Line Auto Scrolling UM216 allowing user to send longer than 16 character message to each line of the display. When input line is longer than 16 bytes, UM216 will altomatically scroll the display horizontally. User can program the pace how fast the scrolling to be.
++Unique Serial Number Each UM216 has a unique serial number. Host can query this serial number through command. The unique serial number will make it easier to enable software copy protection in your end product. The serial number is 32 digit hex number. There is no way for user to change this serial number through software.
++Fan Failure Reporting UM216 does not support fan speed control, but does support fan speed monitoring. Host software can query individual fan speed. The unique feature in UM216 allows user to record the fan speed in UM216 s memory by issuing a host command. When fan(s) speed droping to 70% of the recorded speed, UM216 will automatically send warning message to the host through USB port. This can reduce the possibility the host overheat due to fan failire.
++32 Temp Sensors UM216 supports up to 32 Dallas one wire digital temperature sensors. Host can query those sensor data through the USB port.
++Linux and Windows Support UM216 can work in Windows and Linux environment. Software utility can be download, which showing what commands and reply going back and forth between UM216 and host, to simplify the software development.
Since UM216 is a USB only device, it can not work with serial port. Due to IDC connector can not guarantee the power and ground being connected first, UM216 can not be hot plugged and unplugged using the 10 pin IDC header. Hot plug and unplug UM216 by the IDC 10 pin header can cause UM216 permanent damage, which voids the warranty.
UM216 can directly replace CrystalFontz 633 USB version (fan monitor only, not speed control, but have unique serial number for each unit).
You can download windows driver by clicking here;
You can download windows testing tool by clicking here;
You can download UM216 document by clicking here;
UM216 is a trademrk of CAI and its subsideries. All Rights Reservers Copyright CAI 2008, 2010
