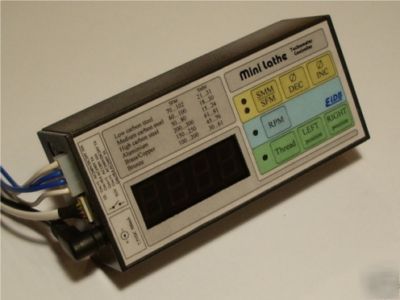

Mini lathe / mill 7X10 7X12 sieg C2/C3 rpm tachometer
Compatibility: 7x10, 7x12, Sieg C2/C3 or similar mini lathe.
Display: Large 14mm (0.56"), bright LED display
Work diameter: 0.1 to 799.9mm (0.01 to 31.50 in.)
Calculate surface feed per minute (SFM): 0 to 9999
Calculate surface meters per minute (SMM): 0 to 9999
Measure RMP (spindle speed readout): 50 to 9999
Screw cutting control: automatically stops lathe at the ends of thread.
Don't need sensitive manual stop.
Operating temperature: +5 to +35degrees C
Storage temperature: -40 to +85 degrees C
Relative humidity: 0 to 90% (non-condensing)
Power requirements: +6.5 to +12Vdc @ 0.35A (max)
Dimensions L x H x D: 132 x 60 x 40 mm (5.2 x 2.37 x 1.58 in.)
Motor switches: UL - Cos.=1 AC240/DC24V 10A
1. Mini Lathe Tachometer - Controller.
3. Universal(US/EU) AC/DC 100...240V adapter.
5. Interrupter wheel. 20 teeth. M27 x 1.5
User's manual: http://www.eldb.webuda.com/downloads/Mini%20Lathe%20Tachometer%20Users%20Manual.pdf
For more information, please see: http://www.eldb.eu or http://www.eldb.webuda.com
