Hp 100 digital torque meter screw driver wrench test

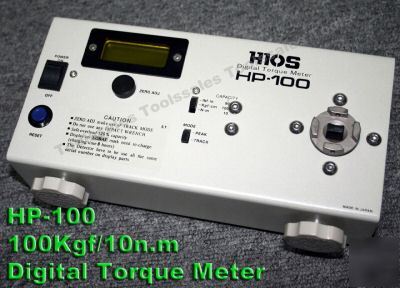

H10S HP-100 Digital Torque Meter
HP-100 Digital Torque Meter is a intellectualized instrument for measuring and setting the mechanical torque. This torque meters can be employ for inspecting the torque of electric screw driver, torque driver and wrenches, inspection function control, with custom jig, unit also can be measure motor torque or custom mechanical system.
Design for easy to operate, accurate, high flexibility and portable test unit can widely deploy in the factory with the internal rechargeable battery power.
The HP-100 also offer high compatibility to other industrial torque meter as direct drop in replacement. With analog output for external monitoring. large LCD display and straight forward operation.
1. Display of the torque measurement
2. automatic data average display.
3. Unit can be select as kgf.cm, Lbf.in or N.m
4. Peak hold or track function
5. Rechargeable battery for remote operation.
7. large, touch switch and LCD display for easy operation

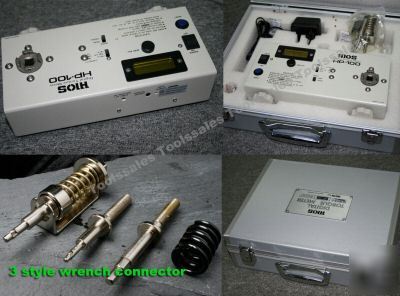

8. fixture clamp for different type of wrench and screw driver bits interface.
9. strong mounting fixture knob
Recharge battery, Ni-Hi 1.2V x 6
Continuous use after full charge
