Cryomagic - controlled rate freezer - 30 liter

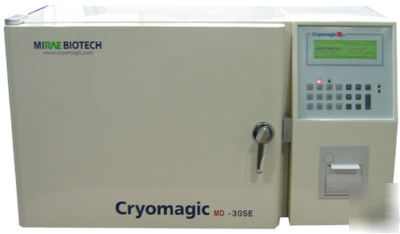

CRYOMAGIC MD-30SE ( 30 liter )
Our most advanced controlled rate freezers are used to store a variety of critical samples of biological freezing or thawing works. The Cryomagic Freezers are available in 30 liter sizes.
1. IVF(human embryo and sperm)
3. Animal embryo, sperm and Oocytes
4. Aquaculture(fish sperm and embryo)
5. Micro-organisms and viruses
11. Plant and fungal cell cultures
12. And many other applications
Cryomagic Freezer consists of a chamber, LN2 Pump(option), dewar(option).
1. Microprocessor-base control unit commands digital pump preset freezing program.
2. Heated liquid nitrogen is transferred from a dewar to the chamber through the digital pump.
The freezing chamber allows samples to be frozen either vertically or horizontally. The standard 30 liter chamber allows the user to freeze human embryo, oocytes, sperm and stem cells. Cord Blood can also be frozen in an optional lid with a rack of six 25cc blood bags. The 0.25cc & 0.5cc straws and 2ml ampoules are commonly used.
The controller allows the user to program runs of varying rates to ensure optimum freezing of individual samples.
Displayed Data: Graphical Temperature Change, Chamber Temperature, Sample Temperature, Elapsed Time, Time Remaining, Program Step, Alarm Messages
An equipped, paper jam-less, compact thermal graphic printer is next to the LCD display. Graphical and alpha-numeric displays, seen on the LCD, can be printed with full information from the program.
Internal Printer : Paper jam-less compact mini thermal printer
2. Heating rate : 0.01C /min to 30C /min
3. Cooling rate :-0.01 C /min to - 50C /min
4. Data storage: 40 programs of up 30 steps each
5. Printer: Thermal graphic printer
6. Display : Full Graphic Display on Monitor(Backlight)
7. Programmable cooling rate range : -0.01 /min to -99.99 /min
8. Chamber capacity : 30 Liter
9. Power requirement : AC 220V/50~60Hz, single phase
System configuration (Included)
a CryoMagic freezing chamber, controller 30 liter (Single Body) 1 set
