Anritsu MS8604A spectrum analyzer opt. 01,02,03,11,12

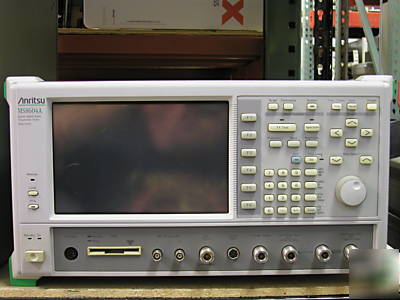

Anritsu MS8604A Spectrum Analyzer Opt. 01,02,03,11,12
* Major transmitter functions evaluated by a single system
* Compatible with NADC, PDC, PHS, Digital MCA, GSM, DCS1800 (PCN), CT2, DECT, WCPE, PACS, RCR STD-39 TETRA systems, and GMSK and pi/4 DQPSK universal measurement
* High-speed measurement (under 1 second for modulation-accuracy measurements)
* Input up to 10 W (internal 20 dB attenuator and power meter for high power levels)
* Quick configuration for different communication systems
* One-touch selection of measurement items
* Direct measurement with broadband power sensor
* Internal calibration signal
* Measurement of antenna power and leakage power during carrier-off
* Frequency Range: 100Hz to 8.5GHz
* Max. input level: +40 dBm (10 W)
* Setting Range: 100Hz to 8.5GHz (resolution: 1Hz), 0 to 2 GHz (freq. band: 0), 1.7 to 7.5GHz (freq. band: 1-), 6.5 to 8.5 GHz (freq. band: 1+)
* Preselector range: 1.7 to 8.5 GHz (bands: 1-/1+)
* Span: Setting range: 0 Hz, 100 Hz to 8.5 GHz
* RBW: Setting range: 10 Hz to 3 MHz (3 dB), 1-3 sequence
* Level measuring range: Average noise level to +40 dBm. Average noise level: -112 dBm
* Reference Level: Setting range: -80 to +40 dBm; Input attenuator: Setting range: 20 to 75 dB in 5 dB steps
* Detection mode: POS PEAK, SAMPLE, NEG PEAK
* AM/FM demodulation: Demodulated waveform display and monitoring demodulated audio signal with internal speaker
* Frequency Range: 100 kHz to 5.5 GHz
* Level Range: -20 to +20 dBm
* Applicable power sensor: MA4601A
* Direct plotting: can hard-copy screen via GPIB 2
GPIB 1 - As device controlled by host
GPIB 2 - Controls other instruments as controller
