Lincoln electric cv-305 mig welder 230/460/575V K2400-2

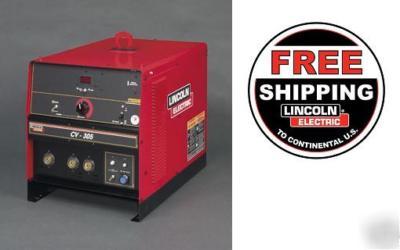

Lincoln Electric CV-305 MIG Welder, 230/460/575V 3 Phase 60 Hz
When it comes to welding mild steel, stainless steel, aluminum and alloy materials, you won t find a more reliable power source than the CV-305. This well-engineered CV unit features two inductance connections. Lincoln s Twist-Mate output connectors make it easy to choose the right inductance for your application.
This unit is the most compact unit in its class, yet it s loaded with convenient features! Digital meters that can be preset, line voltage compensation, a remote and local control option, and a 7-year rectifier warranty what more do you need?
- Stack them three-high or purchase an affordable package that includes the new LF-72 feeder, a Magnum 400 MIG gun and more!
- Two output connectors allow you to optimally connect to high or low inductance for arc conrol. Use low inductance output connection when short-arc welding, and high inductance output connection with spray and globular transfer welding.
Features & Innovations - Compact unit is 20 lbs. (9.0 kg) lighter and significantly smaller than competitive models save your space!
- Easy access Twist-Mate connection on the front of the machine.
- Digital Ammeter/Voltmeter read-out display allows presets for added convenience and accuracy.
- Environmentally protected transformer and power rectifier are rugged and reliable.
- Provides line voltage compensation for maintaining weld consistency, even with changes of 10%.
- Three-year warranty on parts and labor; seven-year warranty on power rectifier.
Dimensions (in): 24.6 H x 19.5 W x 27.0 D
Rated Output: CV: 315 Amps / 32.6 Volts / 100% Duty Cycle
Output Range: 50-400 Amps DC, 7-37 Volts
