Spectra GL412 slope grade laser & CR600 magnet receiver
INCLUDES: GL412 Laser, RC402 two-way radio remote control, CR600 Receiver w/both rod and magnet mounts, NiMH rechargeable battery pack w/chargerd, operator's manual and case.
Versatile Automatic Grade Lasers for Level, Grade and Vertical Alignment

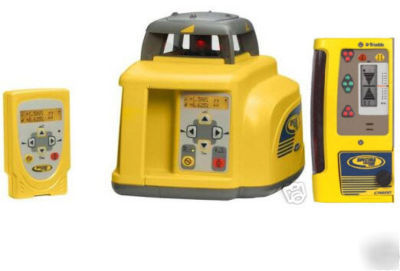

The Spectra Precision Laser GL412 and GL422 Grade Lasers are cost-effective, automatic self-leveling lasers that do three jobs level, grade and vertical alignment with plumb. Both lasers feature a 2-way, full-function remote control so you can make grade changes from anywhere on the jobsite for reduced setup time and faster operation.
The GL412 (single grade) and GL422 (dual grade) lasers send a continuous, self-leveled 360-degree laser reference over your entire work area, and have a wide grade range so they can be used in a variety of slope applications.
* Leveling concrete forms and footers
* General construction vertical alignment and plumb such as anchor bolt and form alignment
* Concrete sections with runoff for sports fields, tennis courts and driveways
* Steep slope road embankments and ditch banks
* Parking garages, ramps and drainage
* Fast, easy horizontal level, grade and vertical plumb setup with no manual leveling
* Automatic temperature and grade compensation eliminates rework
GL412 operating range - 2000' diameter!
INCLUDES: Laser, RC402 two-way radio remote control, CR600 Receiver w/Rod & Magnet Mounts, NiMH rechargeable battery pack w/charger, etc...

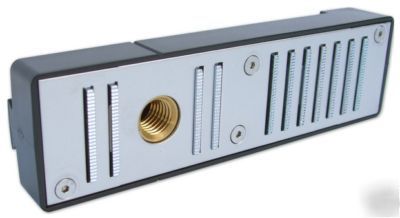

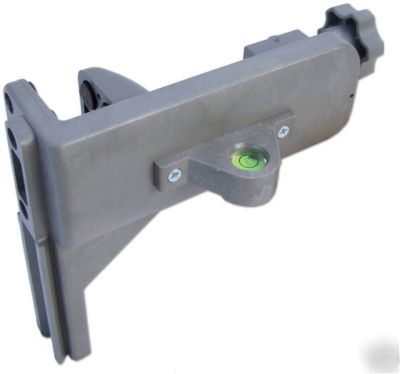

Versatile, accurate and easy to use for a range of grading and excavation applications. Includes both C51 Magnet Clamp & C50 Rod Clamp.

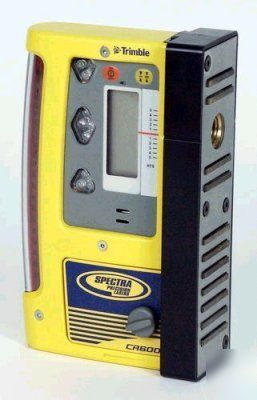

The versatile Spectra Precision Laser CR600 receiver is designed for use by general, concrete and site prep contractors. It is an easy to use tool for accurate measurement of elevations across the site.
The CR600 can withstand harshest conditions on the construction site. It has a rugged, waterproof, lightweight magnesium housing capable of withstanding a drop of up to 3m (10-foot) on concrete.

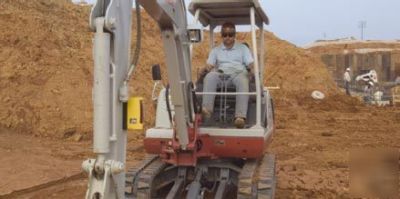

The CR600 can be used as a hand-held or rod mounted receiver for a wide range of applications, including measuring cut and fill, leveling forms and footers, setting grade and measuring elevation changes. In addition, the CR600 can be used as a machine control magnetic mounted receiver for use on a backhoe, small excavator or skid steer loader. The CR600 is an ideal low-cost entry to machine control productivity.
With its 15-channel linear display, it does not require the operator to be on-grade' to measure, as the high and low indicators allow the offset to the on-grade position to be directly measured. Moving outside of the receiver pickup area, the lost beam direction indication allows contractors to quickly recover the on grade position.
click on C51 magnet to enlarge
* Checking sub-base materials
INCLUDES: GL412 Laser, RC402 two-way radio remote control, CR600 Receiver w/both rod and magnet mounts, NiMH rechargeable battery pack w/charger, Hard Shell Carry Case and Operator's Manual.
