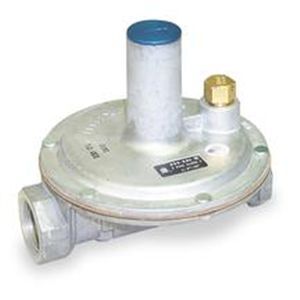

New maxitrol 325-5AL 1" gas pressure regulator brand
Outlet Pressure Range (In. WC) 7 to 11
Inlet Emergency Exposure Limits (PSI) 65
Cu.-Ft./Hr. @ 0.3 (In. WC) Pressure Drop 70
Cu.-Ft./Hr. @ 1.0 (In. WC) Pressure Drop 128
Cu.-Ft./Hr. @ 2.0 (In. WC) Pressure Drop 180
Cu.-Ft./Hr. @ 3.0 (In. WC) Pressure Drop 221
Cu.-Ft./Hr. @ 4.0 (In. WC) Pressure Drop 255
Cu.-Ft./Hr. @ 7.0 (In. WC) Pressure Drop 338
Cu.-Ft./Hr. @ 1/2 PSI Pressure Drop 476
Cu.-Ft./Hr. @ 3/4 PSI Pressure Drop 583
Cu.-Ft./Hr. @ 1 PSI Pressure Drop 673
Ambient Temp. Limits (F) -40 to 205
Mounting Position Horizontal Upright
Standards CSA Designed Certified Z21.80 / CAN 6.22
* Made for natural, manufactured, mixed, LP, or LP gas-air mixtures.
* Housings are corrosion-resistant aluminum alloy. External venting must be in accordance with government and plumbing codes and regulations. NPT connections.
* Ambient temp. range: -40 Degree to 205 DegreeF (Maxitrol RV47L (1/2'') is 32 Degree to 225 DegreeF)
* For use on piping systems such as CSST (corrugated stainless steel) or semi-rigid copper tubing.
* Provide precise regulation from full flow down to pilot flows. Maxitrol 325-3L (1/2'' W/12A09) includes automatic vent limiting device. Maxitrol 325-3L48 (1/2'' OPD), Maxitrol 325-5AL48 (3/4'' OPD), and Maxitrol 325-5AL600 (3/4'' OPD) include over-pressure protection device to limit downstream pressure.
Gas Pressure Regulator, Lever-Acting Line, Pipe Size 1 In, FNPT Connection, Max Inlet Pressure 2 PSI, Outlet Pressure Range 7-11 In WC, Inlet Emergency Exposure Limits 65 PSI, Ambient Temp Limits -40 To 205 F, Max Load 300,000 Btu/hr, Capacity 425,000 Btu/hr, Horizontal Upright Mounting Position, Venting 3/8 In NPT, Cu-Ft/Hr @ 03 70 In WC) Pressure Drop, Includes Vent Limiter, Standards CSA Designed Certified Z21.80 / CAN 6.22
