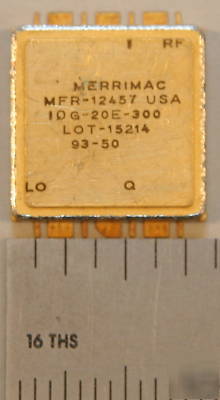

Merrimac IQG-20E-300 I&Q Network
* LO Center Frequency, fO: 300 MHz
* RF/LO Input Characteristics (50 Nom.)
* Power Level: 0 dBm Nom.
* LO Power Level @ fO: +10 dBm Nom.
* Conversion Loss (RF to I/Q): 10 dB Typ, 12 dB Max
* IF Quadrature Balance (I to Q), @100 kHz IF
* Phase, @ LO=fO: 1 Nom, 2 Max
* Phase, @ LO=fO 5%: 3 Nom, 5 Max
* Amplitude, @ LO=fO: 0.2 dB Max
* Amplitude, @ LO=fO 5%: 0.5 dB Max
