Antenna connector n male solder straight connector

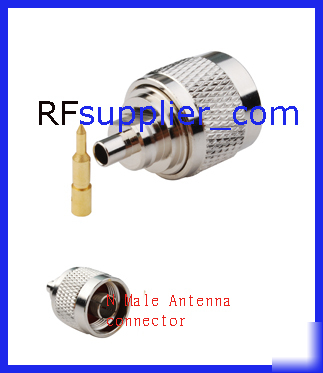

N male solder straight for antenna connector
N series RF connectors are 50 ohm constant impedance connectors with a consistently low VSWR across its frequency range of 0 to 11GHz. They are high quality medium size connectors standardly used with coaxial cables from .350" to .450" OD, but designs can also acccomodate .078" to .875" cables. N type connectors are threaded and gasketed for weatherproof operation. The threaded coupling incurs low noise and withstands shock and vibration. LTI N connectors are designed to conform to MIL-C-39012 specifications.
Lighthorse Technologies offers a few styles of 75 ohm impedance versions of N connectors. They are not matable with the 50 ohm connectors.
The N series connector is the most popular medium sized connector. Applications include test and measurement, antennae, base stations, transmitters, etc.
Temp.range................................. -65 C +165 C (PE Cable)
Vibration...................................... MIL-STD-202, MethoD 213
Impedanec ...................................50
Frequency Range...........................DC 11GHz
Working Voltage ...........................1000V max
Withstand Voltage..........................2500V rms
Center Contact ............................. 1m
Outer Contact ............................... 1m
Insulation resistance...................... 5000 m
VSWR Straight ............................. 1.15
Right angle.................................... 1.25
Durability(mating)........................... 500 (cycles)
shell................... brass ....................nickelplated
contact pin.......... brass ....................goldplated
elastic contact..... beryllium................ goldplated
socket.............. beryllium or tin brass ...goldplated
crimping suite....... copper alloy.......... nicked or goldplated
o-ring sealing ........6146 silastic
