High performance 12 volt brushless dc motor BN23 moog\

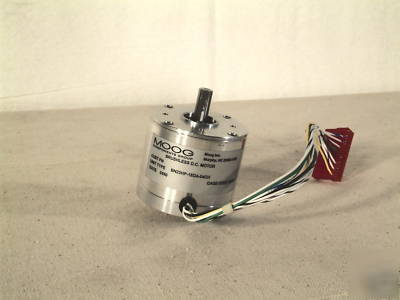

This is for (1) One piece of a Moog Silencer Series BN23HP Motor, Brushless 12 VDC Motor
The HP in the part number means High Performance, which equates to almost 2 times the torque of the standard motor.
Utilizing high energy sintered neodymium magnets, the BN23HP brushless motor offers almost 2 times the torque capability of the standard BN23. When maximum performance and minimum size are important, the BN23HP offers an effective solution.
The Motors are New, Unused and we have a nice supply in stock, so you are not limited to the 10 pieces listed.
Click here for a complete drawing of the motor, including wiring information.
Performance Specs at 25 degrees C.
* Terminal Voltage (V) 12 VDC
* Peak Torque (Tp) 334 oz-in. Max.
* Continuos Stall Torque (Tc) 44 oz-in Max.
* No Load Speed (Snl) 3400 RPM Nominal
* Torque Sensitivity (Kt) 4.75 oz-in/Amps +/- 10%
* BEMF Constant (Ke) 3.51 Volts/Krpm +/- 10%
* Terminal Resistance (Rm) 0.17 Ohms +/- 12%
* Terminal Inductance (Lm) 0.146 mH +/- 30%
* Motor Constant (Km) 12.8 oz-in/?"Watts Nomiinal
* Rotor Inertia (Jm) 0.99 (oz-in-sec2)X103 Nominal
* Body and End Cap material is Aluminum
* Shaft is Stainless Steel with a flat
* Please see the print for mare detailed information on the motor
Applications include but are not limited to
In a few Words, lots of applications.
The Motors are New, Unused and we have a nice supply in stock.
* We have offices in both California and Tennessee. By law, sales tax will be charged for those states.
Moog BN23 Series High performance motor
