Fluke 789 processmeter with I1010 ac/dc current clamp

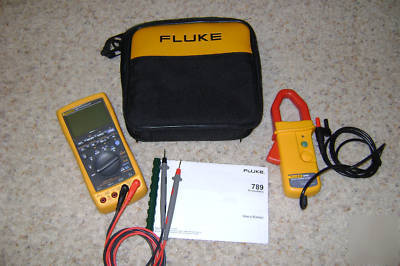

Fluke 789 Process meter with i1010 AC/DC Current Clamp with user guide and carrying case

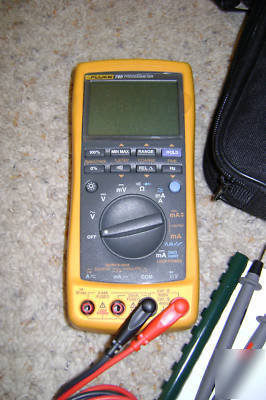

The Fluke 789 ProcessMeter was the first tool to combine a loop calibrator with a DMM to give process technicians double the power in one tool. Now it's even better the ultimate loop calibration multimeter the Fluke 789 ProcessMeter. The 789 has a display that's not only twice as large, but also twice as bright with two levels of backlighting. And with its built-in, selectable 250 ohm HART resistor, it eliminates the need to carry a separate resistor with you. Now process technicians can do a lot more while carrying a lot less. On line prices $699-$799Features at a Glance:
* DMM designed to meet 1000 volt IEC 1010 CAT III standards
* Precision 1000 V, 440 mA True-rms digital multimeter
* Min/Max/Average/Hold/Relative modes
* 20 mA dc current source / loop calibrator / simulator
* Manual Step (100 %, 25 %, Coarse, Fine) plus Auto Step and Auto Ramp
* HART mode setting with loop power (adds 250 ohm resistor)
* 1200 ohm drive capability on mA source
* Enhanced backlight with two brightness settings
* 0-100% mA Span Check buttons to toggle between 4 and 20 mA
* Infrared I/O serial port compatible with FlukeView Forms Software V 2.1 (available Feb. 2003)
* Externally accessible fuses for easy replacement
* 1,200 ohm drive capability on mA source
* 0-100 % mA Span Check buttons to toggle between 4 and 20 mA
* Infrared I/O serial port compatible with FlukeView Forms Software Version 2.1 (available Feb. 2003)

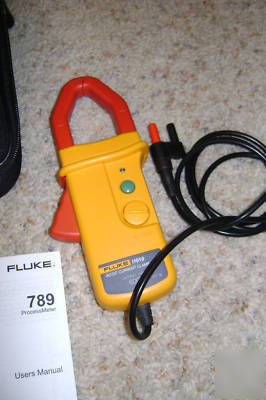

The i1010 AC/DC Current Clamp allows multimeters to measure up to 600A AC or 1000A DC.
* Current Range: 1A to 600A AC or 1A to 1000A DC
* Basic Accuracy DC or 45Hz to 400Hz: +/- (2 % of reading +0.5A)
* Output Signal: 1mV/A AC/DC
* Frequency Range: 45Hz to 2kHz
* Working Voltage: 600V AC rms
* Maximum Conductor Size: one 30 cm (1.18 inch) or two 25mm (0.98inch) diameter
* Safety Rating: EN61010, CAT III 600V On line prices +/- $300
Carrying case $45.00 TOTALING OVER $1045
