15"/23" x 50" harrison m-390 gap bed engine lathe

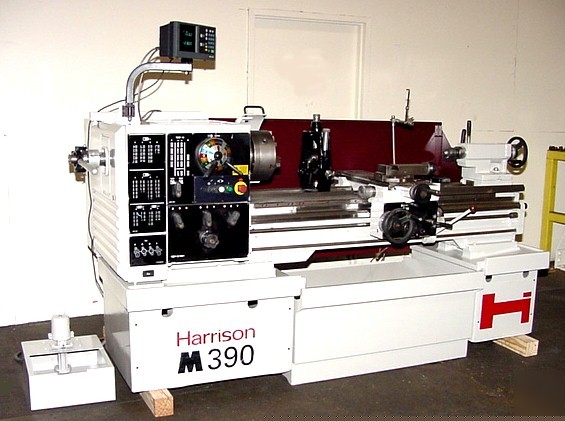

15"/23" x 50" HARRISON M-390 GAP BED ENGINE LATHE
15"/23" x 50" HARRISON GAP BED ENGINE LATHE
MODEL: M390, S/N: G70269, NEW: 1997
SWING IN REMOVEABLE GAP ................. 23"
SWING OVER CROSS SLIDE .................. 9.7"
DISTANCE BETWEEN CENTERS ................ 50"
HOLE THROUGH SPINDLE .................... 2.1"
SPINDLE NOSE ............................ D1-6 CAMLOCK
SPINDLE SPEED RANGE (16) ................ 25 - 2000 RPM
ENGLISH THREADING RANGE (56) ............ 2 - 56 TPI
METRIC THREADING (51) ................... .2 - 14 mm
FEED RANGE LONGITUDINAL (42) ............ .0014 - .096 IPR
CROSS FEED 1/2 OF LONGITUDINAL SETTING
WIDTH OF BED ............................ 12.5"
CROSS SLIDE TRAVEL ...................... 9.8"
TOP SLIDE TRAVEL ........................ 5.1"
TAILSTOCK SPINDLE TRAVEL ................ 5.5"
TAILSTOCK SPINDLE TAPE .................. #5MT
APPROX DIMENSIONS ....................... 99"L x 49"W x 51"H
APPROX WEIGHT ........................... 3500 LBS
LEVER OPERATED 5C COLLET CLOSER
