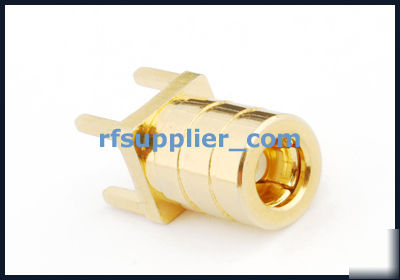

10PCS smb female pcb rf connector
10pcs SMB female PCB RF connector
Temp.range.....................-65 +165 (PE Cable - +85)
Vibration......................... MIL-STD-202,Method 213
Impedanec.......................50
Frequency Range..............DC 12.4GHz(0 18GHz)
Working Voltage...............335V max
Withstand Voltage........... 1000V rms
Center Contact................. 3m
Outer Contact.................. 2m
Insulation resistance......... 5000 m
Insertion loss .................. 0.15 dB/6GHz
VSWR Straight................. 1.10+0.002f
....................................... 1.05+0.001f
Right angle ...................... 1.20+0.003f
....................................... 1.10+0.001f
shell .......................brass ..........................goldplated
inner conductor....... beryllium or tin brass.... goldplated
insulator................. PTFE
crimping suite.......... copper alloy................. nicked or goldplated
o-ring sealing.......... 6146 silastic
