Phosphate / gypsum / calcium grinding mill
1. Feed Hopper - Steel plate welded construction, 10 tons capacity, 3000 mm L x 2500 mm W x 2500 mm H size, mounted on steel supporting structures, complete with rack and pinion discharge gate.
2. Horizontal Belt Apron Feeder - 2900 mm L x 600 mm W size, driven by 4 kw motor, complete with frame decking and belt scrapper.

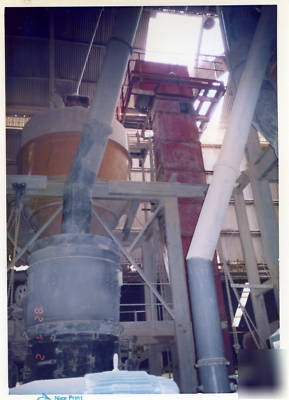

3. Vertical Belt and Buckte Elevator - Steel plate casing, 1400 mm L x 800 mm W x 12.00 H OAD, driven by 20 hp motor, mounted on concrete foundation, complete with feed and discharge chutes, head platform and ladder.

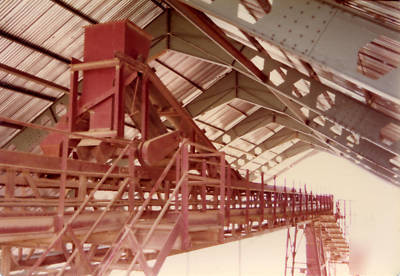

4. Inclined and Horizontal Belt Conveyor - 36, 000 mm L x 600 mm W size, driven by 7.5 hp motor, mounted on steel supporting structures, complete with frame decking feed boot, discharge chute.
5. Belt scraper and Walkway Horizontal Belt Conveyor - 20,000 mm L x 600 mm W size, driven by 5.5 hp motor, mounted on supporting structures, complete with frame decking, feedboot; dishcharge chute, belt scrapper, walkway and other accessories.
1. Mill Feed Hopper - Steel plate welded construction, 20 tons capacity, mounted on steel supporting structures, complete with ladder.
2. Mill Feeder - Roll type, approx. 300 mm dia x 500 mm L size, driven thru speed reducer by 1 hp motor.

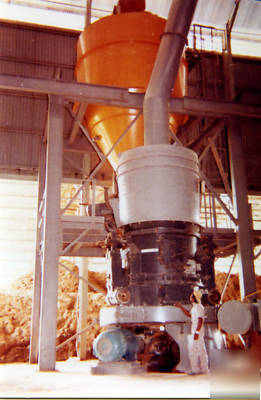

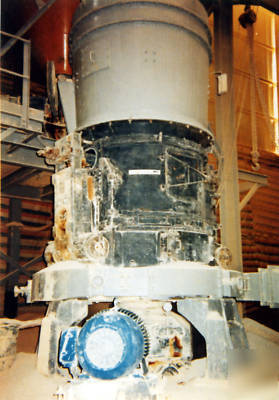

3. Milling Machine - Lopulco, NEI International Combustion Ltd., England butterfly valve type, driven thru geabox by 110 kw motor, steel casing, mounted on concrete foundation, complete with other accessories.
4. Cyclone Collector - Steel plate welded construction, complete with feeder, driven by 1 hp motor.
5. Tubular Filter - Steel construction, complete with feeder, driven by 1 hp motor.
6. Product Hopper - Steel plate welded construction, 10 tons capacity, mounted on steel supporting structures, complete with rack and pinion discharge gate.

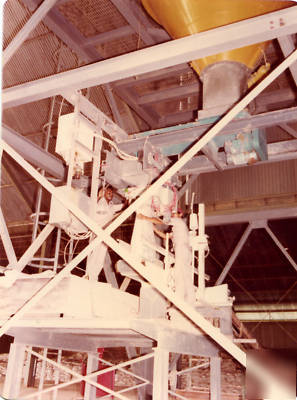

7. Bagging Machine - Avery, England, 50 kgs capacity, automatic loading-unloading type, adjustable
8. Bagging Sewing Machine - High speed heavy duty type, adjustable pedestal, driven by 113 hp motor, complete with : -
Horizontal Belt Conveyor - 2.100 mm L x 300 mm W size, driven by 1 hp motor.
Bagging Product Conveyor - steel construction, frictionless graqvity roller type, mounted on steel supporting structures.
