Supermax cnc vertical machining center

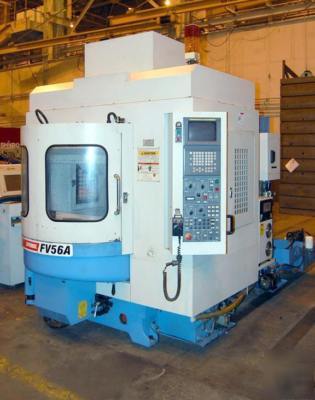

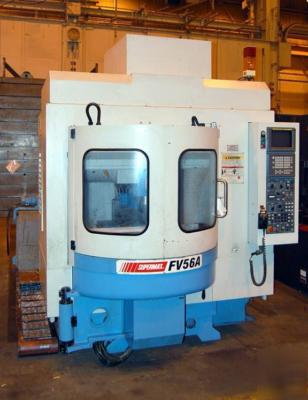

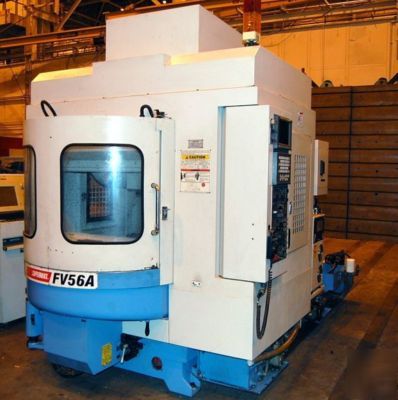

Supermax CNC Vertical Machining Center
X-Axis Travel ........................ 22.04"
Y-Axis Travel ........................ 16.10"
Z-Axis Travel ........................ 17.71"
Pallet Size (2) ...................... 22" x 16.1"
Palley Load Capacity ................. 264 lbs
Spindle Speed (Maximum) .............. 10,000 RPM
Spindle Taper ........................ CAT 40
Spindle Drive Motor .................. 15 HP / 10 HP
Rapid Feed Rate (X & Y Axes) ......... 1418 IPM
Rapid Feed Rate (Z Axis) ............. 945 IPM
Cutting Feed Rate .................... .04-394 IPM
Tool Changer ......................... 20 ATC
Tool Length .......................... 11.8"
Tool Weight Capacity ................. 13.2 lbs
Pallet Change Time ................... 5 Seconds
Approximate Weight Of Machine ........ 6820 lbs
Floor Space .......................... 96" x 64" x 97"
20-Station Automatic Tool Changer

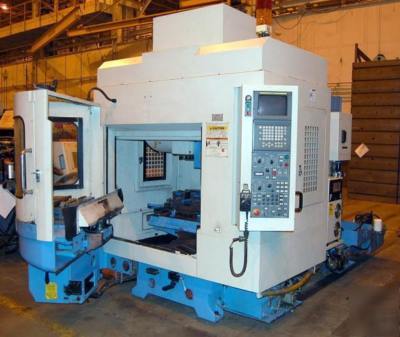

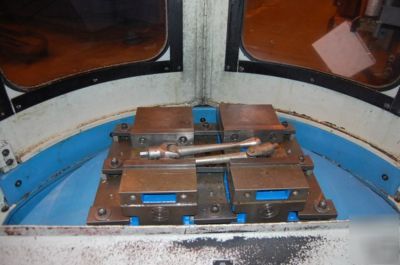

(2) Pallet Rotary Shuttle System
Complete Chip / Coolant Enclosures
