New fluke dsp-4300 cable analyzer CAT5E CAT6 DSP4300

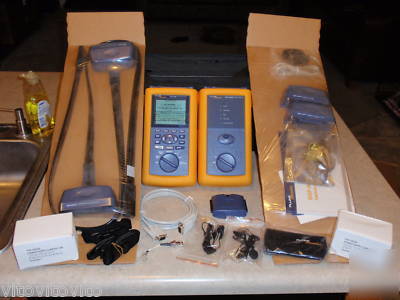

* (1) CABLE ASSEMBLY, CABLE ASSY, 2 COND, BNC(F), MODPLUG
* (1) DSP-LIA012 CAT 6 CHANNEL/SERVICE.
* (1) DSP-LIA013 CAT 6 CHANNEL/TRAFFIC/SERVICE.

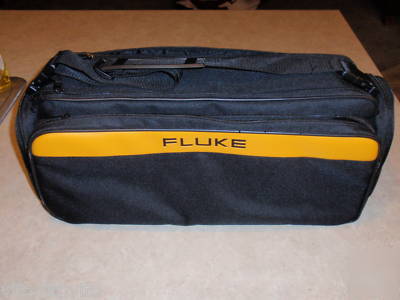

* (1) SOFT CASE, BLACK/YELLOW
* (1) REGISTRATION CARD,LAN GOLD SERVICE.
* (2) AF TRANSDUCER, SPREAKER/MICROPHONE HEADSET
* (1) CABLE ASSEMBLY, 8 COND, 9S D-SUB, 9S D-SUB
* (2) FLUKE-700-8030, STRAP, 701/702.

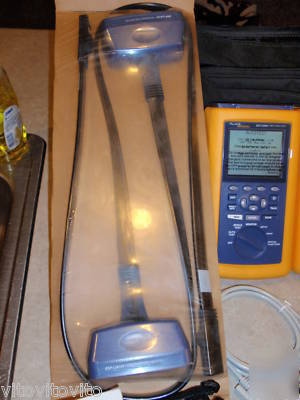

* (2) DSP-LIA101 PERMANENT LINK ADAPTER
* (1) SOFT CASE, BLACK, NEOPRENE, MEMORY CARDS.
* (1) CD-ROM, USER MANUAL, DSP-4000 SERIES
* (1) GUIDE, DSP-4000 SERIES, GETTING STARTED
* (1) MMC/SD CARD READER, USB, W/CABLE, FLUKE LOGO
* (1) CD-ROM, SOFTWARE, LINKWARE
* (2) DSP-PM06T, PERONALITY MODULE SINGLE, TESTED (PM06)
* (1) Fluke Networks Statement of Calibration

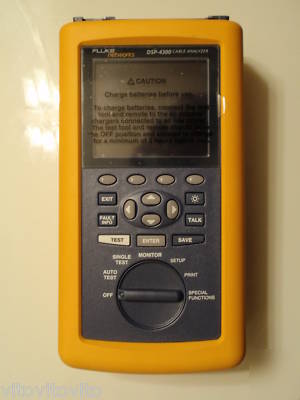

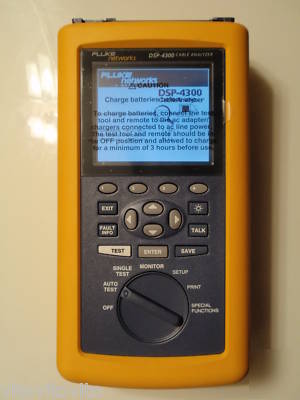

* (1) Fluke DSP-4300 Main Unit

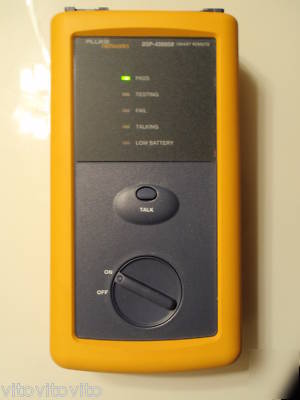

* (1) Fluke DSP-4300SR Remote Unit
Fluke Networks DSP-4300 Digital Cable Analyzer
* Exceeds spec requirements for Cat 5, Cat 5e and Cat 6 with Level III Accuracy, employing the same DSP-4000 measurement capability independently verified UL
* Delivers more accurate PASS results with the new revolutionary Permanent Link Adapter - now included with the DSP-4300
* Includes Cat 6 Channel Adapter and a Channel/Traffic Adapter so you're ready to test Cat 6 channel limits with DSP accuracy
* Automatically diagnoses cabling faults and shows exact location in feet or meters
* Has expanded 16 MB on-board memory and saves up to a full day's worth of testing (300 tests)
* Ensures accurate data and saves you time by allowing you to download TIA-606A compliant Cable IDs to the DSP-4300
* Includes removable memory card and the most advanced cable test management software package
DSP-4300 offers the most comprehensive cable testing and certification solution for high-speed copper and fiber networks. Expanded on-board memory, increased productivity and accuracy with convenient cable ID download, enhanced Cat 6 Channel adapters and Permanent Link adapters - are all included in the standard DSP-4300 toolset.
The DSP-4300 is Fluke's latest digital cable analyzer. Designed for cable installers and network owners who need to certify high-speed copper and fiber cabling to today's - and tomorrow's - standards. It supports all the tests specified in the new standards, including Near-End Crosstalk (Next), Equal Level Far-End Crosstalk (ELFEXT), Power Sum NEXT, Power Sum ELFEXT, Attenuation, Attenuation to Crosstalk Ratio (ACR), Propagation Delay, Return Loss and Delay Skew.
