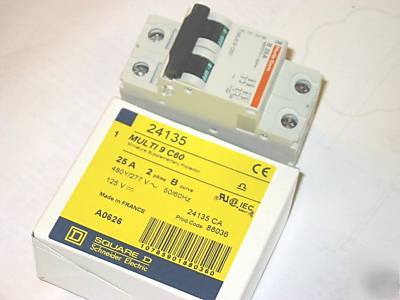

Mg 24135 square d C60 breaker 25A b curve MG24135 multi
24135 SQUARE D C60 BREAKER 25A B CURVE MG24135 MULTI, CIRCUIT BREAKER
MINIATURE SUPPLEMENTARY PROTECTOR
CURRENT LIMITING; 2 POLE; 240/415/440/480 STAR/277 VAC,
125 VDC; 25 AMPERE; INTERRUPTING RATING 10000 AMPERE AT 240 VAC/125 VDC,
5000 AMPERE AT 480 STAR/277 VAC (UL); 20000 AMPERE
AT 240 VAC, 10000 AMPERE AT 415 VAC/125 VDC,
6000 AMPERE AT 440 VAC (IEC); TRIP SETTING 3.2 TO 4.8 X RATED CURRENT AMPERE;
WIRE SIZE 18 TO 4 AWG; BOX LUG TERMINAL; 35 MM DIN RAIL MOUNTING;
SIZE 1.42 INCH W X 2.98 INCH D X 3.19 INCH H;
APPROVAL, CSA 22.2, CE; MULTI 9 [T] BRAND; MG MODEL; APPLICABLE STANDARD IEC 947-2, VDE
