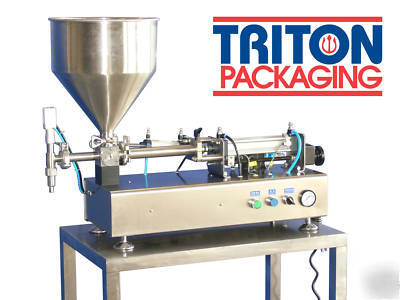

Apolo fp-100D piston filling machine filler volumetric

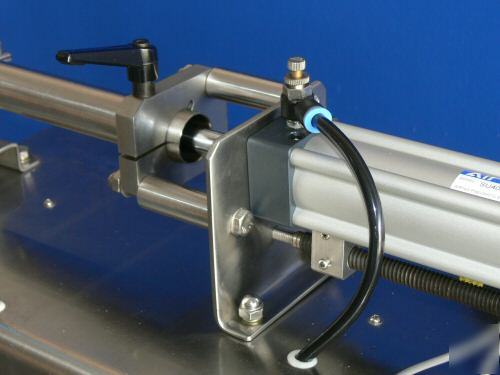

Piston Fillers measure and dispense free flowing products - such as thin and/or dense liquids - onto a container. Each machine is equipped with one or more volumetric pistons. Each fill/release cycle consists of an intake stroke, where the product is withdrawn from the container or hopper and taken into the product cylinder. The down stroke commences as soon as the product cylinder has reached its predetermined fill level. The piston pushes the product out of the cylinder and into the container.
* Filling Range: 0.676 - 3.381oz. (20 - 100 ml)
* Approximate Speed: 20 25 pcs/min(depending on operator speed, product density, draw length, a fill speed, among others)
* Suitable to fill low to high-density liquids (0 10,000 cp)
* Includes one 13 Liter Hopper
Available Options (not included with the machine)
Boxed Machine Size: 50 (1270mm) x 40 (457mm) x 21 (432mm)
Boxed Machine Weight: 115 lbs (53 kgs)
