New halsey taylor HAC8FSQ water cooler
Our Asset #:KSC348 - 503 Qty available:1

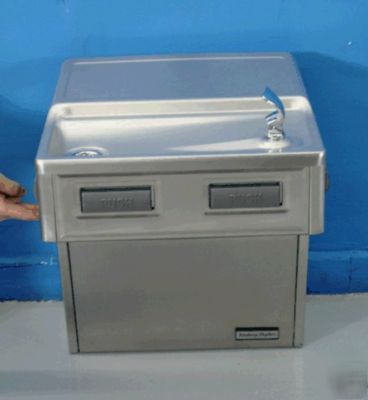

NEW Halsey Taylor HAC8FSQ Water Cooler
Model: HAC8FSQ 1E Serial #: 030318651 Year:
HP/Amp/KW/KVA:4.5 Amps Voltage: 115 Phase: 1 Other Info:
Self-contained, electric refrigerated wall-mounted
water cooler easily accessible to physically
challenged individuals. When properly installed,
unit meets state and federal requirements for
both children or adults as defined by the
Americans with Disabilities Act. Unit is certified
to NSF/ANSI 61, and meets requirements of the
Safe Drinking Water Act. Unit provides 50 F
water at 80 F inlet water and 90 F ambient.
Stainless steel panels resist wear and corrosion.
Durable satin finish helps hide water spots and
Non-corrosive stainless steel cooler top, no.
300 series with satin finish resists stains and
corrosion and is easy to maintain. Anti-splash
ridge reduces splatter. Contoured to insure
Exclusive one-piece, chrome-plated twostream
non-removable anti-squirt feature and integral
hood insures a satisfying drink of water.
Self-closing light-touch push bars on front and
sides with raised letters for the visually
AUTOMATIC STREAM HEIGHT REGULATOR
Self-closing assembly is located inside unit to
prevent tampering. Unit resists corrosion and
liming. A constant stream height is automatically
maintained under line pressures that vary from
Easily cleaned in-line strainer screen traps
particles of 140 microns or larger before they
Positive sensing thermostat for controlling
temperature of storage tank water. Factory set
Non-pressurized stainless steel
evaporator/storage tank for long life.
Waterways are certified to NSF/ANSI 61,
far exceeding the requirements of the
Hermetically sealed, positive start compressor
with lifetime lubrication and built-in overload
protection, efficient capillary sizing, large
capacity dryer-strainer, and self-lubricated fan
cools copper/aluminum condenser. System
uses R134A refrigerant. Protected by Halsey
Taylor s Limited 5 Year Warranty.
Insure proper ventilation by maintaining
6" (152mm) minimum clearance from
Shall deliver 8.0 GPH of 50 F water at 90 F
ambient and 80 F inlet water. Shall have
stainless steel basin with removable drain
strainer. Bubbler shall be two-stream, mound
building type. Separate valve and automatic
stream regulator shall be mounted within
cabinet. Refrigeration system shall employ high
efficiency, positive start compressor using
R134A, non-pressurized tank with totally
encapsulated insulation and be controlled by
positive sensing thermostat. Shall have front
and side push-bar water controls with raised
lettering for the visually impaired. Cooler shall
comply with ANSI 117:1 and ADA for visual
and motion disabilities. The manufacturer shall
certify the unit to meet the requirements of
NSF/ANSI 61, and the Safe Drinking Water Act.
Unit complies with ARI Standard 1010.
NOTE: Continued product improvement
makes specifications subject to change
without notice. See Halsey Taylor website
Standard Finish Is Stainless Steel
Mounting height recommended 281/2" from
basin to floor. May be mounted at any desired
Mount trap and install service stop to building
supply line. Anchor hanger bracket securely to
wall on all sides. To insure proper engaging of
waste line into trap, centerline of trap must be
61/4" from wall face. Remove slip nut and gasket
from trap and install on waste line tube. Hang
cooler on bracket and engage waste line tube
into trap inlet. Centerline height of waste outlet
will vary from floor line depending on mounting
height. Install 3/8 supply tube to in-line strainer.
Secure bottom of cooler to wall using holes
Trap and service stop not included.
Supply water - 105 psi maximum
Furnished with plug-in, 3-wire grounding type
service cord. Standard 120 volt, 60 Hz, single
phase. Install 120-volt receptacle, rated at
15-amp minimum, to receive 3-wire parallel
blade grounding type male plug.
Length: 18 Width: 19 Height: 25
a. Est. Wt. each: 57LBS b. Est. pkging wt: 15 c. Est. total wt: 72
