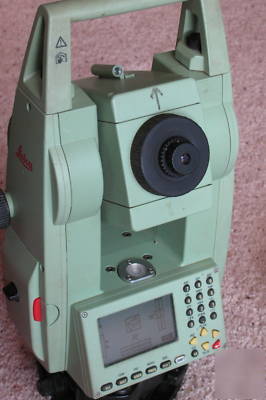

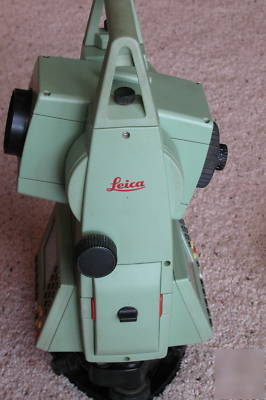

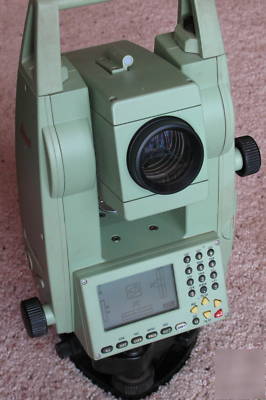

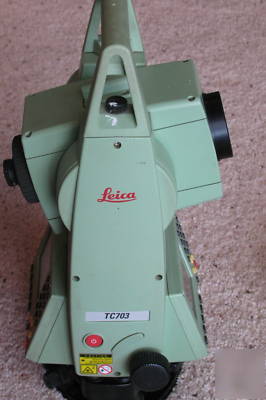

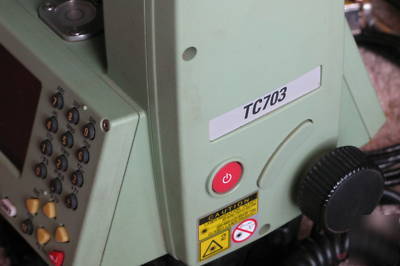

Leica TC703 total station 3" surveying survey tc 703
Excellent Physical Condition. A small amount of typical wear on the handle. No paint chips, never been dropped or abused. Storage case shows typical wear and scratches.
Glass is excellent. No signs of scratches or dust.
Mechanically excellent. Performs like new. Recently calibrated.
Distance measurement: 1Prism: 3.500m/11.480ft, 3Prism: 5.000m/16.400ft
Distance measurement precision: +/-(1mm + 2ppm)

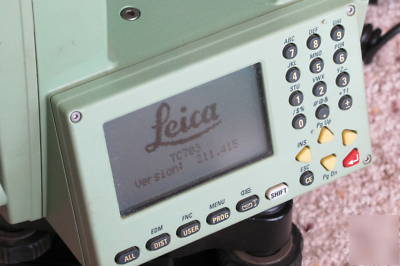

Display: Dual, LCD, 8 lines of 32 characters, graphics capability, on- line help, messages
Keyboard: 32keys (numeric and alphanumeric input) 12-key numeric block, 20 function keys
ATR1 mode: 1Km/3300 with prism and 0.5 Km/1650 with 360deg prism
Lock mode: 0.5 Km/1650 with prism and 350m/1150 with 360deg prism
Minimum distance range: 5m/16.4 (ATR1) and 20m/65 (LOCK)
Leica TC703 total station with 3 angle accuracy and continuous, with absolute encoders which do not require rotating telescope for indexing. Unit features laser optical plummet for he ease of centering over tripod. Unit features dual reading alphanumeric huge display on both side for more convenient read outs on field. Data transfer to a personal computer or any data collectors is possible with the RS-232C interface, and also memory on board can store up 8000 data blocks, which will save you the purchase of data collectors. Unit features continuous drives for horizontal and vertical motions (tangent screws) without using locking system. To eliminate power problem in field unit can be power up either with rechargeable camcorder battery or 6X AA batteries. Unit is completely waterproof and it is based on IP54 for better function in all environmental conditions.

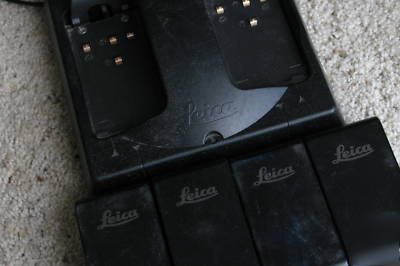

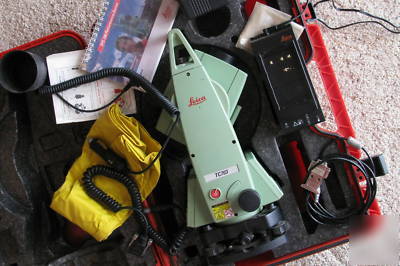

1 GKL112 Single Battery Charger
1 GKL122-1 Dual Battery Charger
5 GEB 121 Batteries (batteries hold approx. 50% charge each)
12 Volt cigarette charger adapter
Original Instruction/Field Manual
