Hydraulic hatch lifter system linear actuator 24" & 18"
ELECTRIC/HYDRAULIC HATCH LIFT SYSTEM 24"&18" STROKE
* Marine grade stainless steel and aluminum construction
* Compact size, light weight (13 lbs)
* Smooth, quiet, responsive hydraulic action with no coasting
* Extends a complete 24" in 8-11 seconds
* Hydraulic system is virtually maintenance free
* Can operate with environmentally responsible fluid
* Easily replaces old and troublesome electric hatch lifting systems

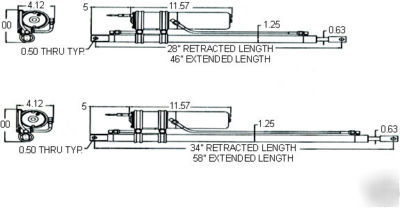

* Extended and retracted positioning shown left
* Rocker Switch not included with Ram Lift's
HL 24 consists of a 1" bore cylinder 32.00" on centers retracted length with an 24.00" stroke and a 56.00" extended length. The cylinder tube is 6063T832 aircraft quality hard coat anodized aluminum. The Rod is 5/8" stainless steel with aluminum clevis. Mounted on the cylinder is light duty power pack # PT116N-NP-2 a 12 volt reversible permanent magnet motor with a 19 cu. in. reservoir and hydraulic pump. The pump displacement is .04 cu.in. per revolution. maximum hatch weight 900 pounds with a 1" bore cylinder. Motor is SAE J1171marine. For weights up to 1800 pounds use heavy duty power pack # PT406N-2 with 2 cylinders. Each HL 24 is supplied with a pump/motor/reservoir that is bracket mounted on the cylinder and includes stainless or cadmium plated fittings, hoses and hydraulic fluid. Cylinder may be purchased separately as part number CYL 24.
