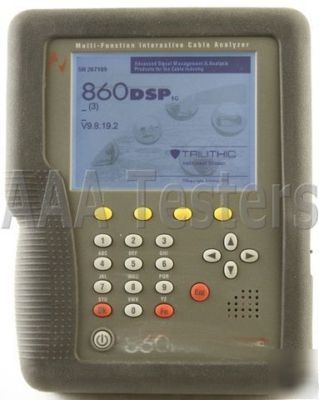

Trilithic 860DSPI multi function cable analyzer dsp exc
**********************************************************************************************************************************************************************************************************************************
**********************************************************************************************************************************
ENHANCED DIG. VID. 00B2 HIGH SPEED PUT THRU
ETHERNET ; CI-4 QAM SOURCE MODE
CM TO RJ45 TRAFFIC CONTROL FEATURE
The first handheld field analyzer with an optional embedded CableLabs certified DOCSIS 3.0 modem
- Test DOCSIS, cable modem performance and VoIP quality analysis to DOCSIS 3.0 levels
- DSP technology for quick, accurate measurements and high tech productivity
- Internet browser and server functions integrate with OSS and Workforce Management
- Large, easy-to-read display and simple user interface for shorter learning curve
- Efficient design for long battery life up to five times that of competing instruments
- Adaptable platform grows to meet the needs of technicians at every tier
- The high-performance portable analyzer for the digital age.
- Now you can use a single instrument for all the critical transmission and signal quality tests you need to install and maintain analog, digital, HSD and VoIP services without the pauses and boot-up delays of other field analyzers.
You can also easily upgrade the 860 DSPi for new applications right in the field or add powerful options like high-resolution spectrum analysis, QAM and QPSK constellation displays and a wide range of return path tests, all without impacting size or weight.
This optional feature allows the operator to connect an off air antenna to the 860 DSP input port and read level, MER, BER, and view constellation and equalizer tap information on 8 VSB channels.
Unsolicited Grant Service (UGS)
Advanced CSO / CTB in-channel functionality
Enables in-service testing when used with a 3rd party Line Blanker.
This is feature that can be used to verify the line blanking.
@25 C +/-0.75 dB Over temp (-18 to +50 C): +/-2.0 dB (Analog), +/-2.5 dB (Digital)
Carrier-to-Noise (In-service, non-scrambled standard channels only)
Min Input Level for Full Range
Hum (In-service, non-scrambled standard channels only)
Depth of Modulation (In-service, non-scrambled standard channels only)
Video, Audio, Pilot, and Digital Carriers; includes total power measurement
Forward (Sweepless) Sweep Mode
User selectable in 10 kHz steps
Selectable Detector Modes (Narrow or Wide) and Dwell Time
10, 30, 100, & 300 MHz; 1, 3 MHz
Nominal level in < 7 ms, +/- 2 dB for nominal in 4 ms (300 kHz RBW)
50 ms to 20 sec in 1, 2, 5 settings
ITU J.83 Annex A, B, C QPSK, 16, 32, 64, 128, & 256 QAM(at symbol rates from 2 MSPS to 6.9 MSPS)
64 QAM: -20 to +50 dBmV (typical) 256 QAM: -15 to +50 dBmV (typical)
BER (64 & 256 QAM, pre & post FEC)
64 & 256 QAM, 6 MHz Channel Bandwidth: Range: 21 to 38 dB, Accuracy (typical): 1.5 dB 64 & 256 QAM, 8 MHz Channel Bandwidth: Range: 21 to 35 dBAccuracy (typical): 2.0 dB
64 QAM, 6 or 8 MHz Channel Range: 1.1% to 8.1% Accuracy: 0.5% (1.1 to 2.0%) 1.0% (2.1 to 4.2%) 1.6% (4.3 to 8.1%) 256 QAM, 6 or 8 MHz Channel Range: 1.1% to 5.3% Accuracy: 0.5% (1.1 to 2.0%) 0.8% (2.1 to 4.2%)
QPSK; QAM (16, 32, 64, 128, & 256)
Operating Time, Continuous Use
- Trilithic 860 DSPi With Options:

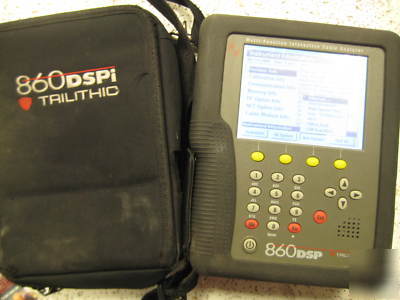

- Soft Carrying Case With Strap
