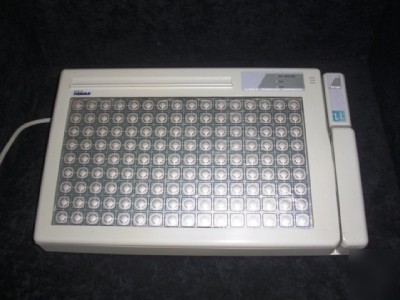

New utc M500 pos keyboard 500 series credit card reader
Up for sale is the following: The Ultimate Technology Corporation model M500 keyboard. This keyboard has never been used. It comes in the original box from Diebold and original foam packaging.
Here are some features of this unit:
Series 500 POS Keyboards are point-of-sale (POS) keyboards designed for use with a PC or
ASCII terminal. These keyboards have total flexibility in keyboard layout coupled with an extensive
programming capability. Each keyboard contains a built-in magnetic stripe reader (MSR), two
serial ports, two cash drawer status ports, a main keyboard port, and an auxiliary keyboard port.
The Series 500 POS Keyboard provides both the hardware and firmware interfaces necessary to
fully integrate a modular "open system" POS workstation when attached to a PC or terminal, and
connected with a printer, cash drawer and display of the users choice.
Full travel, standard size keys - up to 112 keys
Full travel, compact size keys - up to 144 keys
Flat panel (micro motion), standard size - 112 keys
Flat panel (micro motion), compact size - 144 keys
All key locations are available
permanently printed or re-legendable. Full travel
keycaps have removable plastic covers for relegending.
Flat panel membrane versions are relegendable
by use of interchangeable overlays.
Standard keyboard configurations
including QWERTY and typical POS layouts are
available. Custom configurations of any number of
All keys can be reprogrammed to output
any code. Single wide, double wide, and quad
keys can be placed anywhere on the keyboard.
Spacers are available for unused key locations.
BUILT-IN MAGNETIC STRIPE READER
Programmable for prefix, suffix, separators and
MAGNETIC STRIPE CARD CONTROLLED
For data entry when full alphanumeric capability is
For programming key codes (local method)
Main communications port when used as a
Hardware and software handshaking
Selectable baud rates (300 bps - 57.6 Kbps)
2048 16 character memory locations
Selectable tone and duration
