Global specialties logic test kit 2 this dude is money

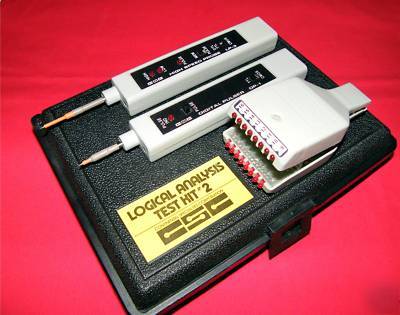

This listing is for one Global (Continental) Specialties Logic Monitor Kit. If you are a component-level tech or engineer, this little box will not only amaze you, it will save time and money. There are 3 main elements.
1. DP-1 Data Pulser The pulser generates TTL or CMOS pulses, sinking or sourcing loads, of 1.5 micro seconds. Push once for a bounce-free single pulse, or hold down for a pulse train at 100pps. Switch to CMOS and pulse width increases to 10 micro seconds. The pulser comes with an assortment of tips, leads, etc.
2. LP-3 Logic Probe The logic probe is also hand held, but it detects, memorizes and displays events down to as little as 10 nanoseconds. Logic families include DTL/TTL CMOS and HTL. The kit has a number of probes and e-z hooks.... The Probe also takes power from VCC on your system board.
3. LM-1 Logic Monitor The logic monitor is also rather handy. It simultaneously displays all up to 16 pins on digital DIP ICs... static or dynamic logic states in DTL, TTL, HTL or CMOS. Great for design, breadboarding and testing of new logic systems.
I'm an engineer and this is one of the most impressive kits I've seen. The books are here, it looks and functions "just like new". Your satisfaction is guaranteed with this one.... lots of bang for the buck. Contact the Doc if you have questions! I have more pics if needed.
