Animatics motion controler RTC3000 with demex
ANIMATICS Motion Controler RTC3000 with DEMEX
The RTC3000 is miniature servo controllers with built-in amplifier for use in OEM equipment to control very small brushed or brushless DC servo motors.
The RTC3000 measures 3.68 x 1.815 x 0.35 inches and makes all connections on the long edge side. The RTC3000 operates from a 12 to 24 VDC source and switches 1 Amp of continuous and 3 Amp of peak current. The RTC4000 measures 1.18x2.15 x 0.50 inches. The RTC 4000 operates from a 12 to 24 VDC source and switches 3 Amp of continuous and 6 Amp of peak current.
The small motor controller outputs are protected from short circuit to each other, to supply and to ground. The 32K of internal program memory can be used by jumpering two signals together at the memory port. Alternatively, the port signals can be routed to an external memory module. Either way, the unit can be programmed in BASIC to operate stand-alone. Stand-alone programs can interact with all inputs and outputs of the RTC3000, affording total flexibility and a multitude of additional interface options. The controller communicates over RS232 and RS485. All signal ports have supply and ground to power external devices such as limit switches, encoders, hall sensors, etc.
Like the SmartMotor, both the RTC3000 and RTC4000 have an additional network port called AniLink that interfaces with a vast array of peripherals.
Item were removed from working system with Good & clean physical condition.

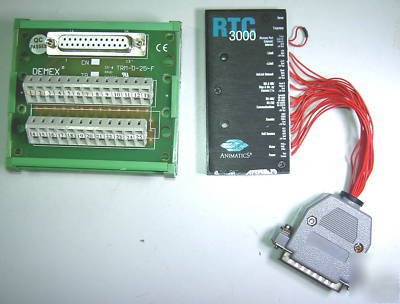

Picture shown the actual item for sale
Feel Free to ask any question & enquire for Item detail
11. All accessories are not includes unless stated
