#8248 - pines model 25T vertical tube bender

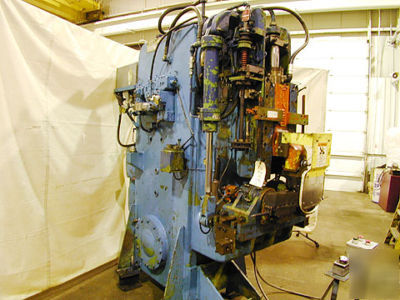

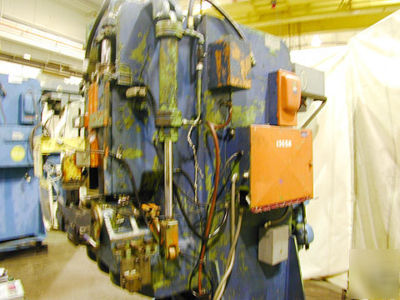

PINES MODEL 25T VERTICAL TUBE BENDER
Typical production - bends per hour 700 - 900
Tube size range - outside diameter 1/2" - 2-1/4"
Maximum capacity - steel tubing 2-1/4" O.D. x .083" wall
Maximum bending angle 165 degrees
Centerline radius range (max.- min.) 10" C.L.R. / 5" C.L.R.
20 HP A/C Hydraulic system motor
(10) position degree of bend selector (turret)

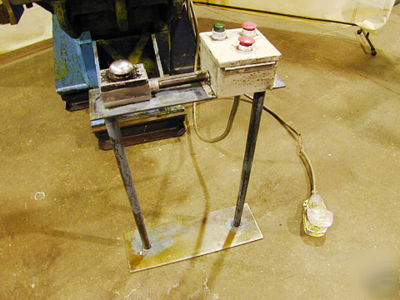

Single palm button control on pedestal
