Nexel poly-z brite wire shelving 14"X36" (S1436Z)(P34Z)

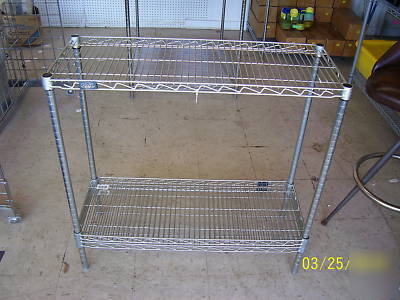

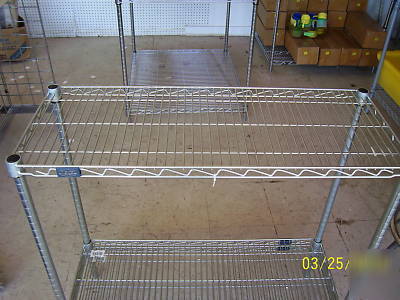

NEW, NEXEL POLY-Z-BRITE WIRE 3 SHELF UNIT - 14"x36" - POST 34"
IN EXCELLENT CONDITION AND SHAPE. (TAGS STILL ON SHELVES)
This wire shelf design offers high volume, easy access storage. Reinforced, open wire truss shelves feature front to back welded surface ribs for added strength. Features a beautifully polished chrome finish, increases light penetration, free air circulation and merchandise visibility. Minumizes moisture and dust accumulation. Easily adjustable and expandable to change with your needs.
Poly-Z-Brite shelving carries a 10 year warranty against corrosion, but should not be used to store abrasive items, such as concrete samples. It is also much better for the environment that chrome and it's equivalent in price. With all this going for it, Poly-Z-Brite is a much better choice than chrome. (10 year warranty by manufacturer)
Shelves mount to the posts with the included shelf clips and adjust on 1" increments. No tools required. NSF approved.
LOAD CAPACITY FOR INDIVIDUAL SHELVES:
* Wgt. Cap.: 42" and less: 800 lbs/shelf
* POSTS: 1" in diameter; adjustable on 1" increments; numbered every 1"
* SHELF MAT WIRES: #9 wire (.1483" dia.) on .7917" centers; #6 wire (.192" dia.) used for shelf support wires
* WIRE SHELF FRAMES: 1/4 rod (.25" dia.) on frame; 1/4" rod acts as natural frame to help prevent items from falling off
* SHELF CLIPS: two piece plastic split sleeve
* SHELF COLLAR: tapered collar snugly locks on tapered plastic split sleeve
* STRENGTH & SHELF DEFLECTION: shelf widths of 42" and less will hold up to 800 lbs. each
P34Z 34" Poly-Z-Brite Post $7.52 ea.

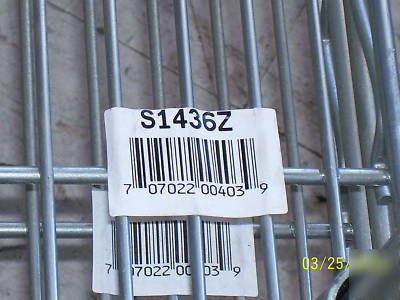

S1436Z 14"x36" Poly-Z-Brite Shelf $22.55 ea.
*THIS UNIT INCLUDES THREE (3) 14"x36" POLY-Z-BRITE SHELVES; 12 SPLIT SLEEVES; FOUR (4) 34" POLY-Z-BRITE POSTS*
1. Shelving unit capacity must not exceed the manufactures specifications.
2. All shelf capacities are rated as evenly distributed loads.
3. Always be aware of the shelf weight carrying capacity Do Not Overload Shelves
4. The first shelf must be located at the bottom of the shelving unit for stability.
5. Do not construct shelving units less then 18" deep and or with posts in excess of 86".
6. Shelving units 14" deep or less must be secured to each other and a rigid wall.
7. Place heavier objects on the lower shelves and mantain an even distribution of weight.
8. Shelving posts come with leveler bolts in order to balance and adjust for uneven floors.
9. Use post clamps where possible and secure shelving to a rigid wall where applicable.
10. Safety is the word of the day. Consider it whenever planning a shelving application.
11. Always reference Nexel catalog when planning a shelving layout. Follow Nexel designs.
12. Do not step, stand or climb on shelving units or shelving carts. They can and will tip over.
*Failure to follow these guide lines can result in property damage and personal injury*
The suggestions above are meant to assist you in elevating your awareness of safety when designing your shelving applications. Because there are so many variations for design and unique applications in shelf loads, floors, ceilings, aisle widths etc., Nexel simply cannot cover all and must leave it up to you. In short, use good common sense, consult the Nexel catalog for specifications, shelving applications and weight carrying capacities etc. Thank you!
*This Warning is in the case that you would purchase this shelving unit for an add on.*
ACME PRICE FOR THIS UNIT: $74.00
*PLEASE SEE ACME RETURN POLICY LISTED BELOW*
REMINDER *The 10 Year Warranty on this unit is the manufacturers (NEXEL) gaurantee. Not ACME's*
If you have any questions on this item feel free to ask. I have listed this item and described it to the very best of my ability. The features, specifications are directly from the manufactures web site. If you need to refrence this, just go to:
