Tse DPT30B cable tensioner puller
TSE DPT30B Cable Tensioner Puller

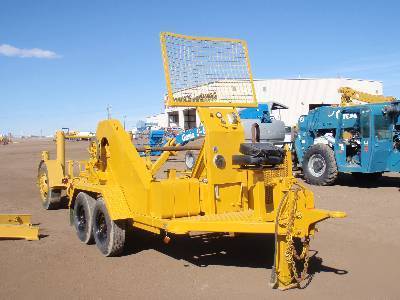

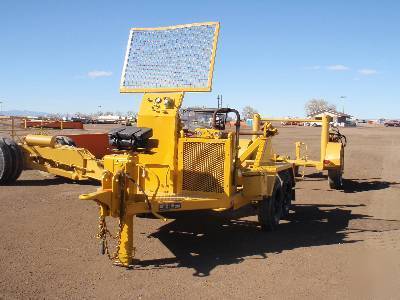

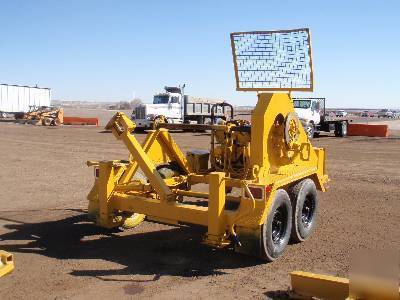

The TSE Model DPT30B is a drum puller designed for the installation of distribution conductors. The reel drive incorporates the latest in hydrostatic transmissions that allow the operator to infinitely vary the linespeed and linepull for safe, positive control during the pulling operation. The maximum desired linepull can be preset prior to pulling so that the reel drive will stall if a restriction to the line occurs, avoiding damage to the conductor, towers and hardware. In the tensioning mode, the hydraulic system permits the line to be pulled at a steady and controlled tension with automatic pull back to keep the conductor suspended if the pulling force is reduced.
The central operators console allows the operator to completely control the pulling operation with optimum visibility of the pulling rope. Operator controls include linepull, linespeed, holding brake, levelwind and engine controls.
* Continuous Torque Rating: 52,000 in.-lbs.
* Intermittent Torque Rating: 60,000 in.-lbs.
* Continuous Linepull Rating: 3,450 in.-lbs.
(with 6,000 ft. of 5/8 rope on the drum)
* 0-2.5mph linespeed with infinite control
