New iwaki fh-20R1 pneumatic air driven bellows pump

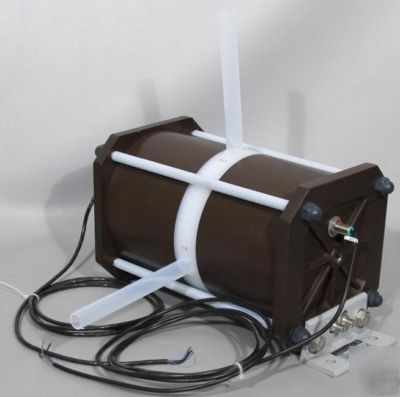

NEW Iwaki FH-20R1 High Temperature Air-Operated Bellows Pump
Specifications are from Iwaki and may vary slightly due to upgrades, options, or revisions this unit may or may not have.
List Price is: $9,944.00 from Iwaki.
Link to the Manual: Iwaki FH-Series Bellows Pump Manual
The FH-10R, 20R type pumps were designed and manufacturered for exclusive use in transferring high-temperature liquids of strong acid.
Maximum Discharge Capacity: 20 L/min
Applicable Liquid Temperature Range: 158 ~ 356 F (70 ~ 180 C)
Maximum Air Supply Pressure: 28.6 PSI (0.2 MPa)
Material of Fluid Contacting Section: PFA
Air Supply Connection Caliber: Rc3/8"
Maximum Air Consumption: 250 NL/min
